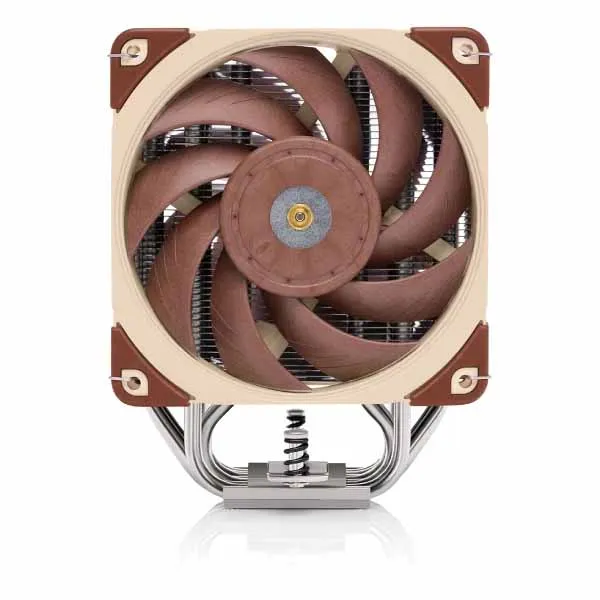

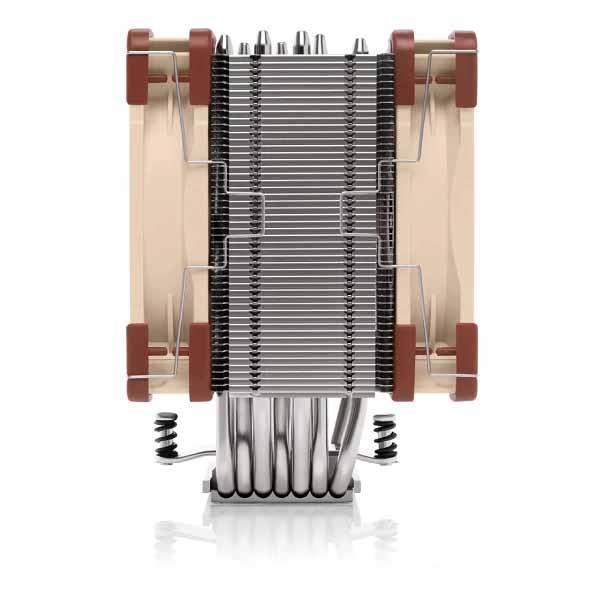

Noctua NH-U12A CPU Air Cooler
Each Tree Have Lifetime CO2 Removal Capacity of 100 Kg
- 140mm class performance in 120mm size: 7 heatpipes, more surface area and a dual fan configuration with state-of-the-art NF-A12x25 fans allow the NH-U12A to rival many 140mm size coolers!
- Excellent case, RAM and PCIe compatibility: Fits most tower cases (158mm height), doesn’t overhang the RAM slots on LGA17xx, LGA1200 and AM4, doesn’t block the PCIe on most ATX and Micro-ATX motherboards.
- Quiet, state-of-the-art NF-A12x25 120mm fans with Low-Noise Adaptors and PWM for automatic speed control: Full cooling performance under load, virtually silent at idle!
- Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1700 (LGA17xx family) LGA1200, LGA115x, LGA2011, LGA2066 and AMD AM4 & AM5
- Renowned Noctua quality backed up by 6-year manufacturer’s warranty, deluxe choice for Intel Core i9, i7, i5, i3 (e.g. 12900K, 12700K, 12600K) and AMD Ryzen (e.g. 5800X3D, 5700X, 5600, 5500)
₹9,150
In stock
Notice any issues?
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
The NH-U12A is the latest, 5th generation of Noctua’s NH-U12 series of 120mm size premium-quality quiet CPU coolers. Conceived to push the envelope of the 120mm form factor, it combines two of Noctua’s flagship model NF-A12x25 PWM 120mm fans with a completely redesigned heatsink featuring 7 heatpipes and an increased fin surface area for superior heat dissipation. This way, the NH-U12A can rival the performance of many 140mm size coolers while offering 120mm class case and PCIe compatibility. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system and Noctua’s proven NT-H1 thermal compound, the NH-U12A is a deluxe choice that combines top-tier performance with excellent compatibility and outstanding quietness of operation.
|
|
|
|
|---|---|---|---|
Classic 120mm tower size for excellent overall compatibilityStanding 158mm tall, the NH-U12A is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups. | 100% RAM compatibility on LGA1851/LGA1700 and AM4/AM5Due to its asymmetric design, the NH-U12A does not overhang the RAM slots on Intel LGA1851/LGA1700/LGA1200/LGA115x and AMD AM4/AM5 based motherboards, which ensures easy access to the modules and 100% compatibility with DIMMs that feature tall heat-spreaders. | ual NF-A12 120mm fansThe NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. Using this elite-class fan in a push/pull dual fan configuration is one of the cornerstones of the NH-U12A’s commanding performance and acoustic efficiency. | NT-H1 thermal compoundNoctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds. |
Cooler Specifications

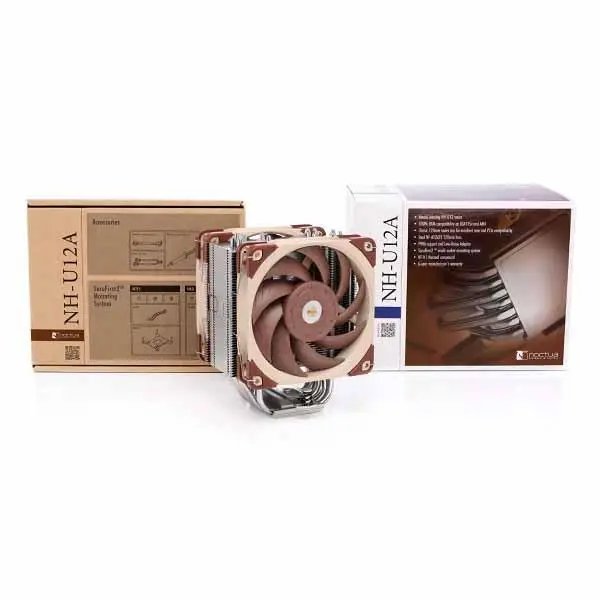

Scope of delivery
- 2x NF-A12x25 PWM premium fan
- 2x NA-RC14 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- SecuFirm2 mounting kit
- NT-H1 high-grade thermal compound
Noctua Metal Case-Badge
120x120x25
Measurements
- Height (without fan): 158 mm
- Width (without fan): 125 mm
- Depth (without fan): 58 mm
- Height (with fan): 158 mm
- Width (with fan): 125 mm
- Depth (with fan): 112 mm
- Weight (without fan): 760 g
- Weight (with fan): 1220 g
140mm performance in 120mm size
Thanks to its completely revised 7 heatpipe layout, 37% more fin surface area and a dual fan push/pull configuration that uses the new, state-of-the-art NF-A12x25 fans, the NH-U12A can actually match or even outperform many 140mm sized coolers.
6-year manufacturer’s warranty
Specification
| Socket compatibility | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
| Height (without fan) | 158 mm |
| Width (without fan) | 128 mm |
| Depth (without fan) | 58 mm |
| Weight (without fan) | 760 g |
| Height (with fan) | 158 mm |
| Width (with fan) | 125 mm |
| Depth (with fan) | 112 mm |
| Weight (with fan) | 1220 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 169 |
| Max. TDP | see NSPR |
| Fan compatibility | 120x120x25 |
| Scope of delivery |
|
| Warranty | 6 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
