Noctua NF-F12 5V PWM 120mm Cabinet Fan (Single Pack)
🌱 Environmental Impact
🌳 0.22 Trees Planted on This Purchase♻️ 22kg Offset
Small contributions are grouped with other orders for planting 1 Tree 🌿
Each Tree Have Lifetime CO2 Removal Capacity of 100 Kg
Each Tree Have Lifetime CO2 Removal Capacity of 100 Kg
✈️ Estimate Delivery:
95
People watching this product now!
15
Items sold in last 3 hours
- Premium quiet fan, 120x120x25 mm, 5V, 4-pin PWM, max. 1500 RPM, max. 22.4 dB(A), >150,000 h MTTF
- Award-winning 120x25mm Focused Flow design for superior quiet cooling performance
- 5V 4-pin PWM version with polarity protection for 5V applications with PWM speed control
- USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones
- Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connection to proprietary fan headers
₹2,249
₹343 GST Included in the Price
You can claim GST with B2B Billing Enter GST No at Checkout
In stock
Notice any issues?
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
Description

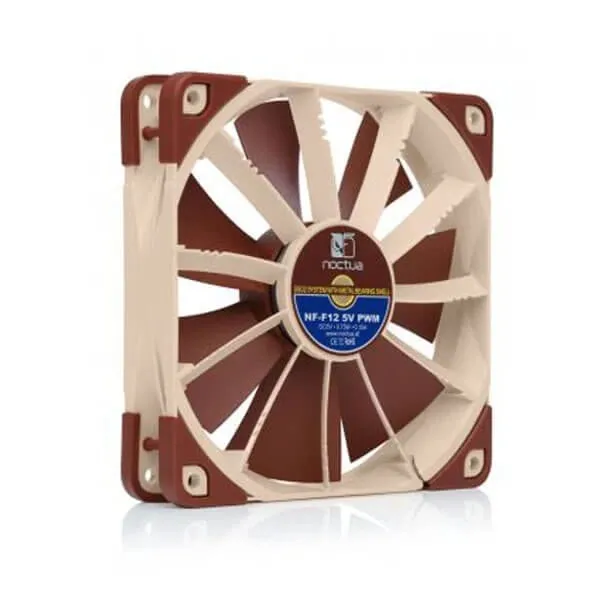

Noctua NF-F12 5V PWM 120mm Cabinet Fan (Single Pack)
Feature
The Noctua NF-F12 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-F12 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as the FocusedFlow™ system, the NF-F12 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin™ adaptor set and 6-year manufacturer’s warranty, the NF-F12 5V PWM is a premium choice for demanding 5V applications that require PWM control.
Award-winning NF-F12 design
Having received more than 100 awards and recommendations from the international press, Noctua’s NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
5V PWM version
5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-F12 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Focused Flow™ frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches
The NF-F12’s stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan’s sound pattern more agreeable to the human ear.
Heptaperf™ Impeller
Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12’s seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-F12 5V PWM uses Noctua’s novel, custom-designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Polarity protection
As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you’re on the safe side if you accidentally connect it with reverse polarity.
SSO2 Bearing
The NF-F12 is the first fan to feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
OmniJoin™ Adaptor Set
Many devices featuring 5V fans use proprietary fan headers, so the NF-F12 5V PWM comes with Noctua’s OmniJoin adaptor set. Just cut the original fan’s cable, fix it to the adaptor using the supplied cable connectors and you can plug the NF-F12 5V PWM to proprietary fan headers!
USB power adaptor cable
The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
Extensive cabling options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.
Additional information
Specification
Specification
| Model Name | NF-F12-5V-PWM |
| FAN Specification | |
| Size | 120x120x25 mm |
| Mounting hole spacing | 105×105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Bearing | SSO2 |
| Blade geometry | Heptaperf™ |
| Frame technology | Focused Flow™ |
| Rotational speed (+/- 10%) | 1500 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 300 RPM |
| Airflow | 93,4 m³/h |
| Acoustical noise | 22,4 dB(A) |
| Static pressure | 2,61 mm H₂O |
| Input power (typical) | 0,65 W |
| Input power (max.) | 0,75 W |
| Input current (typical) | 0,13 A |
| Max. input current | 0,15 A |
| Operating voltage | 5 V |
| MTTF | > 150.000 h |
| Scope of delivery | 30cm extension cable NA-AV1 anti-vibration mounts USB power adaptor cable OmniJoin adaptor set Fan screws |
| Warranty | 6 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
