Noctua NF-A12x25R 120MM Cooler Fan (Single Pack)
- Size 120x120x25 mm
- Connector & pin-configuration 4-pin PWM
- Low-Noise Adaptor (L.N.A.)
- NA-AV2 anti-vibration mounts
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
Noctua NF-A12x25r PWM, Round-Frame 120mm Fan, 4-Pin Case Fan/Cooler – Brown
The Noctua NF-A12x25r is a round-frame version of Noctua’s award-winning flagship model 120mm NF-A12x25 fan. Its round shape makes it ideal for use on low-height dual-tower CPU coolers like the NH-D12L as well as other space-restricted applications that cannot accommodate square-frame 120mm fans. Just like the square NF-A12x25, the round NF-A12x25r uses a record-tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Sharing the same state-of-the-art impeller design with Flow Acceleration Channels, the NF-A12x25r achieves the same class-leading quiet cooling performance as its square-frame sibling. It also supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25r is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for all 120mm applications that require a round frame.

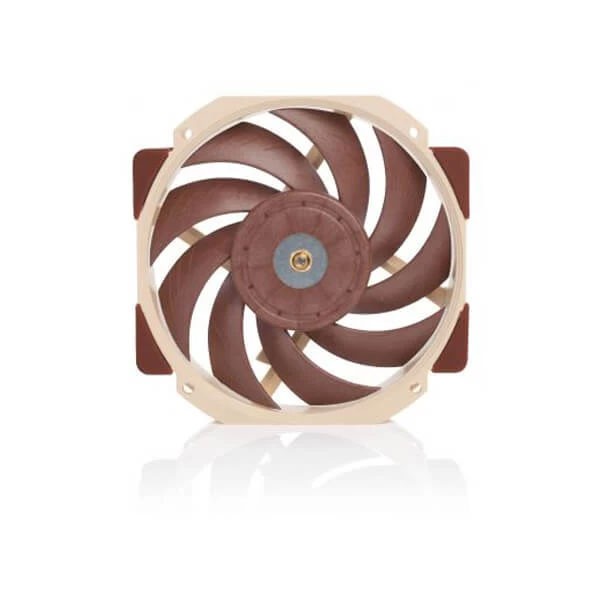

Round frame design
The Noctua NF-A12x25r is identical to the NF-A12x25 except for its round frame that allows it to be used in applications where a square-frame 120mm fan would not fit. For example, the NF-A12x25r is ideal for being sunk in between the dual towers of the low-height NH-D12L cooler without causing compatibility problems with tall motherboard heatsinks or shrouds.
|
|
|
|
|---|---|---|---|

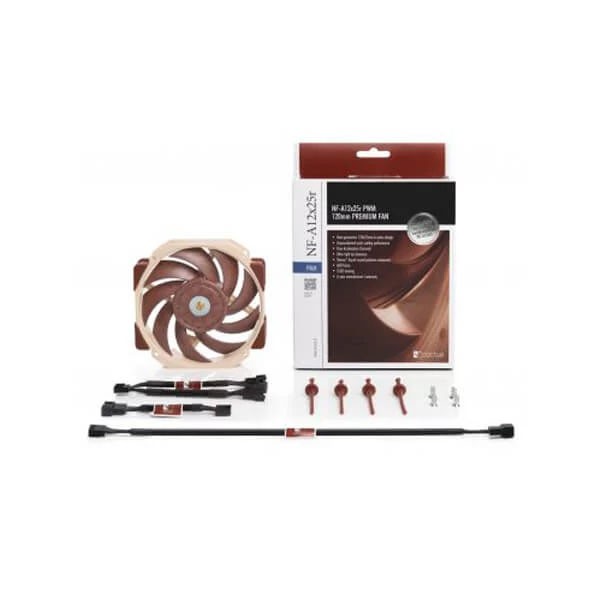

Sterrox liquid-crystal polymer compoundThe NF-A12x25’s impeller is made from Noctua’s novel Sterrox liquid-crystal polymer compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics: ideal for reducing resonance and vibration phenomena in advanced fan-blade designs. | Ultra-tight tip clearanceThe NF-A12x25 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design sets a new benchmark for 120mm fans and helps the NF-A12x25 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame. | Metal-reinforced motor hubThe centrepiece of the NF-A12x25’s motor hub is made entirely from steel and the axle mount is reinforced with an additional brass structure. In combination, both measures ensure ultimate precision and increased stability in the critical hub area. | Scope of delivery
|
Please Note:
The round-frame NF-A12x25r features a custom hole spacing of 93x83mm. Therefore, it is not suitable for applications that require the standard 105x105mm hole spacing of square-frame 120mm fans such as PC cases, water-cooling radiators or CPU coolers with fan clips for square-frame 120mm fans.
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 3 × 12 cm |
| Brands | Noctua |
| Fan Size | 120mm |
| FAN Speed | 1850 RPM |
| Case Fan Pack | Single Pack |
| EAN / UPC Code | 841501110566 |
| Warranty | 6-year warranty |
