MSI USB4 PD100W Expansion Card
- Dual USB 4.0 ports (USB-C)
- Unprecedented 40Gbp Transfer Rate
- Supports up to 100W power charging
- Dual DisplayPort 1.4 Input ports
- Supports up to PCI-E 4.0 x 4
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement

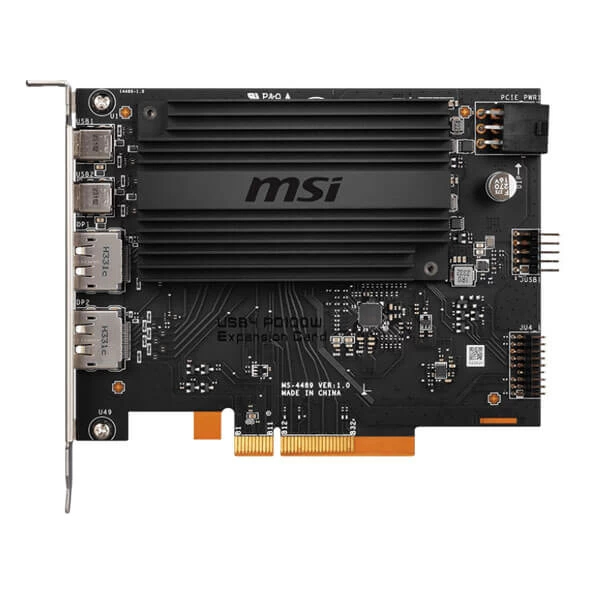

MSI USB4 PD100W Expansion Card
The MSI USB4 PD100W Expansion Card supports PCIe 4.0 x4 interface, offering two USB 4.0 ports and two DisplayPort 1.4 ports. USB 4.0 not only provides high-speed connectivity up to at 40Gbps and supports a maximum of 100W of Power Delivery but is also compatible with a variety of devices.
A New Era of Connectivity – USB4
With USB4 devices that use cables meeting the USB4 standard, you can experience the full benefits of the technology.
Transfer rate of up to 40Gbps
Transfers large files faster than before
Multiple device connectivity
Enables to connect multiple devices through a single port
100W Power Delivery
Provides up to 100W power delivery for fast charging
Dynamic bandwidth sharing
Allows simultaneous transfer of data, images and videos and so on
DP 2.0 compatibility
USB 4.0 is compatible with USB 3.2, and USB 2.0, while also supporting DisplayPort 2.0, enabling 8K/60 display transmission, allowing you to leverage its powerful capabilities across various devices.
| Weight | 1 kg |
|---|---|
| Brands | MSI |
Specification
| Model Name | USB4 PD100W EXPANSION CARD |
| CHIPSET | Asmedia® 4242 USB4 Host Controller |

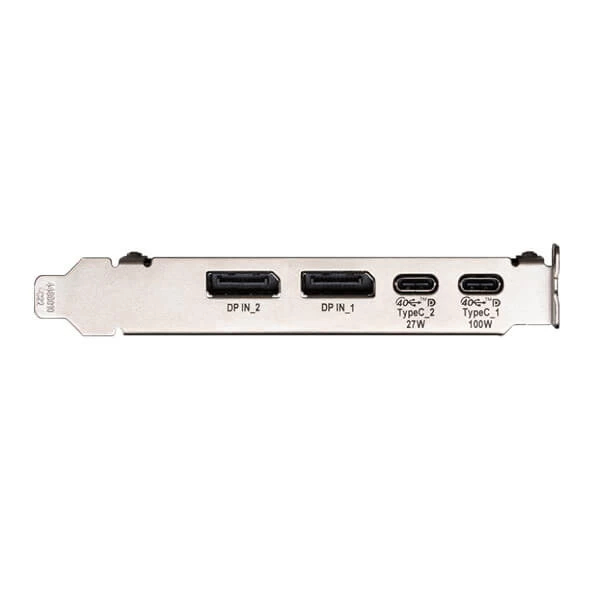

| EXTERNAL CONNECTOR | 2x USB4 (USB-C) ports Supports up to 40Gbps with USB 4.0 devices Supports up to 20V/5A, 100W power charging for USB1 Supports up to 9V/3A, 27W power charging for USB2 Supports USB4 Display (need to connect the DisplayPort output port on the motherboard or discrete graphics card to the DisplayPort input port on the USB4 PD100W card or both Type C ports only support USB4 data transmission.) 2x DisplayPort Input ports DisplayPort 1.4 specification 1x 18-pin U4 header 1x USB 2.0 header 1x 6-pin power connector |
| INTERFACE | PCIe 4.0 x4 (depends on motherboard supportive slot) |
| OPERATING SYSTEM | Windows 11 22H2 and later |
| FORM FACTOR | 5.2 inch x 4.11 inch (13.2 cm x 10.4 cm) |
| PACKAGE CONTENTS | 1x USB4 PD100W card 1x U4 header cable 1x USB 2.0 cable |
| Note | *** Features, Price, Specifications are subject to change without notice. |
