MSI PRO X870E-S EVO WIFI ATX Motherboard
Feature
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and PCB Fabric Peak
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
PRO X870E-S EVO WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
EZ PCIe Clip II
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
Pre-Installed I/O Shield
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
The MSI exclusive JAF_1 header allows MPG EZ120 ARGB fan to operate with a single cable. Alternatively, the JAF_1 header can be converted into additional ARGB Gen 1 and fan headers by using a dedicated 1-to-2 EZ Conn-cable, streamlining and optimizing the entire building process.
EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-S EVO WIFI is ready for the challenge of high-end processors.
Specification
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s | |
| Ryzen™ 9000 Series Processors max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 8200+ MT/s | |
| • 1DPC 2R Max speed up to 6400+ MT/s | |
| • 2DPC 1R Max speed up to 6400+ MT/s | |
| • 2DPC 2R Max speed up to 6000+ MT/s | |
| Supports AMD POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and AMD EXPOTM | |
| Supports Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only* | |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | |
| • The DIMM slots on this motherboard only have single-sided latch. | |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz* | |
| 1x Type-C DisplayPort | |
| USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E1 slot | |
| • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) | |
| Audio | Realtek® ALC897 |
| 7.1-Channel High Definition Audio | |
| Storage | 3x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| M2_1 slot | |
| • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) | |
| *Please refer to the manual for M.2 SSD heatsink restrictions. | |
| RAID | Supports RAID 0 , RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| *RAID 5 configuration is only supported by Ryzen™ 9000/ 7000 series processors. | |
| USB | 4x USB 2.0 (Rear) |
| 6x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 4x USB 5Gbps Type A (Front) | |
| 2x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Front) | |
| 1x USB 20Gbps Type C (Rear) | |
| 1x USB 40Gbps Type C (Rear) | |
| LAN | Realtek® 8126VB 5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Power Connector(PCIE_PWR 8pin) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 6x USB 2.0 ports | |
| 4x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ be | |
| Supports Bluetooth® 5.4**, MLO, 4KQAM | |
| * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. | |
| ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. | |
| LED FEATURE | 4x EZ Debug LED |
| 1x EZ Memory Detection LED | |

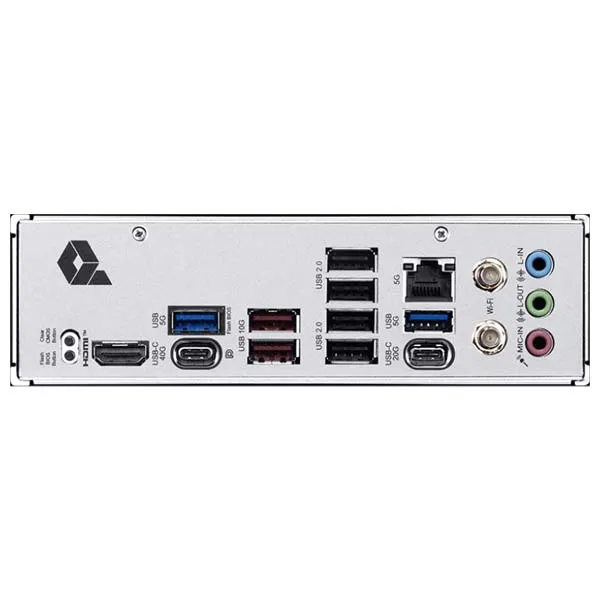

| Back Panel Port | Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | ATX 304.8mmx243.84mm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice. |
