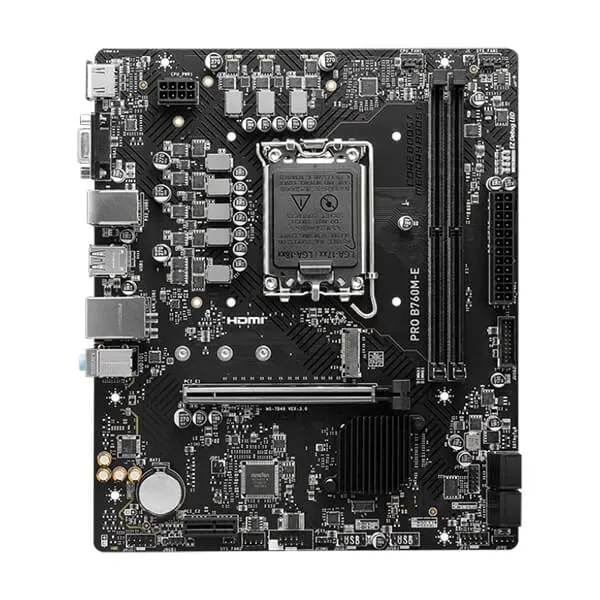

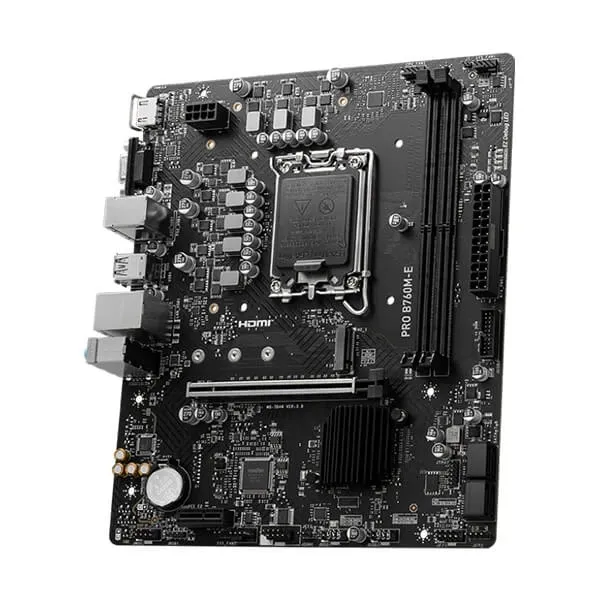

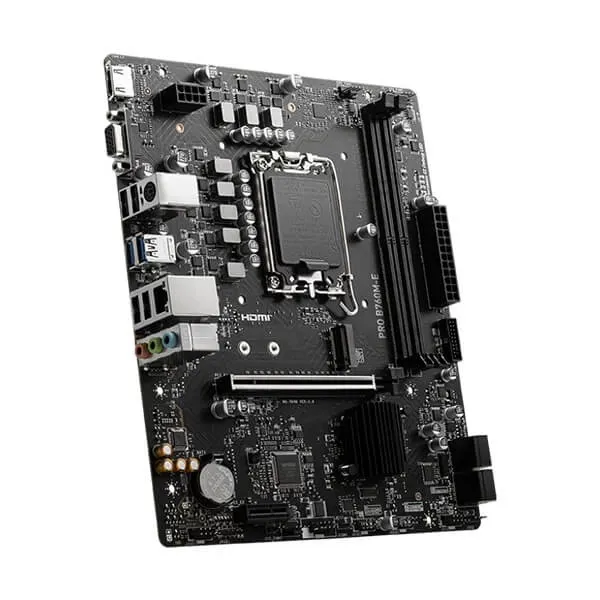

MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 2
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 3
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 4
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 5
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 2
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 3
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 4
MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Image 5

MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

🌱 Environmental Impact
🌳 0.89 Trees Planted on This Purchase♻️ 89kg Offset
Small contributions are grouped with other orders for planting 1 Tree 🌿
Each Tree Have Lifetime CO2 Removal Capacity of 100 Kg
MSI
✈️ Estimate Delivery:
87 People watching this product now!
22 Items sold in last 3 hours
  • 12TH & 13TH GEN CORE – The PRO B760M-E is a compact Micro-ATX motherboard outfitted with the latest Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
  • PASSIVE & AI COOLING – A chipset heatsink provides passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
  • DDR5 MEMORY, PCIe 4.0 x16 SLOT – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 5600 MHz); The PCIe x16 slot supports PCIe 4.0 (64GB/s) graphics cards and includes Steel Armor
  • GEN4 M.2 CONNECTOR – Storage options include 1 x M.2 Gen4 x4 64Gbps slot for hyper-fast SSD access
  • WELL CONNECTED – Network hardware includes a 1Gbps LAN controller; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 1.4 and VGA, and 7.1 HD Audio with Audio Boost

MSI Q3 25

₹8,929

₹1,362 GST Included in the Price

You can claim GST with B2B Billing Enter GST No at Checkout

In stock

SKU: B760M-E Category:
Compare
Add to wishlist

Notice any issues?

Missing Product?

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

1-5 Working Days

  • Official Brand Warranty (Check with Manufacturer)
  • 3 Days DOA Replacement
Description

MSI PRO B760M-E Motherboard, Micro-ATX – Supports Intel 12th & 13th Gen Core Processors, LGA 1700 – DDR5 Memory Boost 5600MHz, PCIe 4.0 x16 Slot, M.2 Gen4 Slot

MSI PRO B760M-E is designed for professional as well as multi-tasking purpose with DDR5 memory version. Users who care about productivity and efficiency can use this motherboard for future use. Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC).

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength





Additional information
Weight1 kg
Brands
ChipsetB760
Motherboard SizeATX
Memory SeriesDDR5
Product Type
RAM TypeDDR5
SocketLGA 1700
Warranty
EAN / UPC Code4711377026987
Specifications

Specifications

ModelPRO B760M-E
ChipsetINTEL B760
CPU SUPPORTSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Memory2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LANRealtek® RTL8111H Gigabit LAN
AudioRealtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED FEATURE4x EZ Debug LED

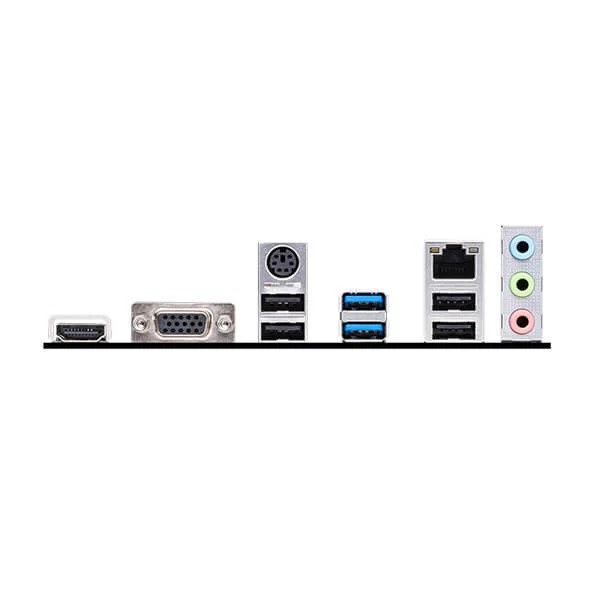

BACK PANEL PORTS
  • HDMI™
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • LAN port
  • Audio Connectors
  • USB 2.0
  • USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)mATX 200mmx236.16mm
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.
