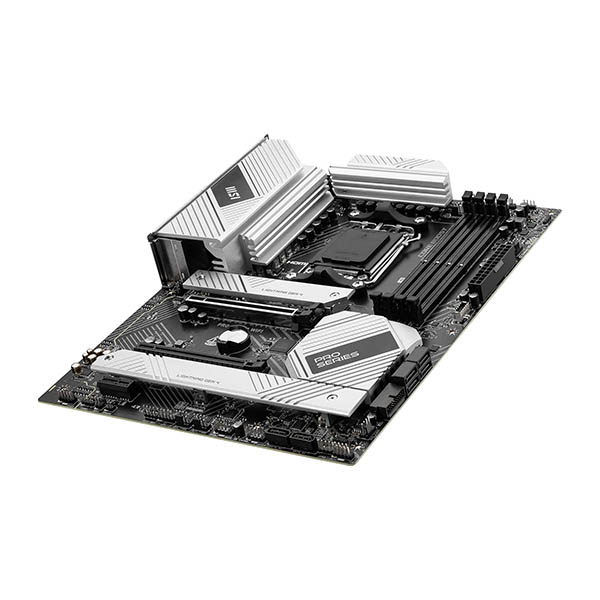

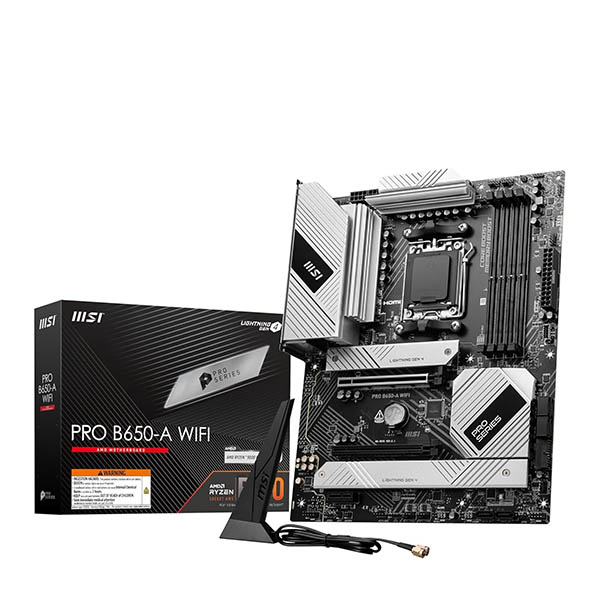

MSI PRO B650-A WIFI AM5 DDR5 ATX Motherboard
- Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
MSI PRO B650-A WIFI AM5 DDR5 AMD B650 SATA 6Gb/s 2.5G LAN Wi-Fi 6E, Bluetooth 8-Channel (7.1) HD Audio AMD Ryzen 9000 / 8000 / 7000 ATX Motherboard
Feature
MSI PRO B650-A WIFI comes With an AM5 socket, you can support a wide range of AMD Ryzen 7000 Series processors. Four dual-channel DDR5 RAM slots allow you to install up to 128GB of memory so you can scale your multitasking performance to your liking. Four SATA and two M.2 interfaces allow you to create an array of storage drives for your games, media, and other important applications. Install graphics and utility cards with one PCIe 4.0 x16, one PCIe 4.0 x16 (in x4 mode), and one PCIe 3.0 x1 slot. The back panel provides you with ample connectivity options, giving you four USB-A 3.2 Gen 1 and four USB-A 3.2 Gen 2 ports, giving you data transfer speeds up to 5 and 10 Gb/s, respectively, suitable for a wide range of peripherals such as your keyboard and mouse. Bluetooth 5.2 technology provides support for wireless devices such as headphones and controllers. When combined with Ryzen processors with integrated graphics, the DisplayPort and HDMI video outputs can provide you with enhanced visual capabilities suitable for light workloads and troubleshooting. Connect to your network via Wi-Fi 6E (802.11ax) technology or use the integrated 2.5 Gigabit Ethernet port for a reliable wired connection.
- CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Bios update MAY required when used with 9000 Series processor
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed
- M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- 2.5G Network Solution
- Memory Boost
DIY Friendly
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
Thermal Enhancements
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B650-P WIFI is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
System Safety
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
Secure Boot
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
EXPO(EXTENDED PROFILES FOR OVERCLOCKING)
Choose from a preset EXPO profile and automatically overclock compatible DDR
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
| Weight | 1 kg |
|---|---|
| Product Type | Gaming |
| Color | Black |
| Brands | MSI |
| Memory Series | DDR5 |
| Motherboard Size | ATX |
| Platform | AMD |
| Socket | AM5 |
| Chipset | B650 |
| Warranty | 3 Years |
| EAN / UPC Code | 4711377246217 |
