MSI MEG Z790 Godlike Motherboard Supports Intel 12th , 13th & 14th Gen Processors

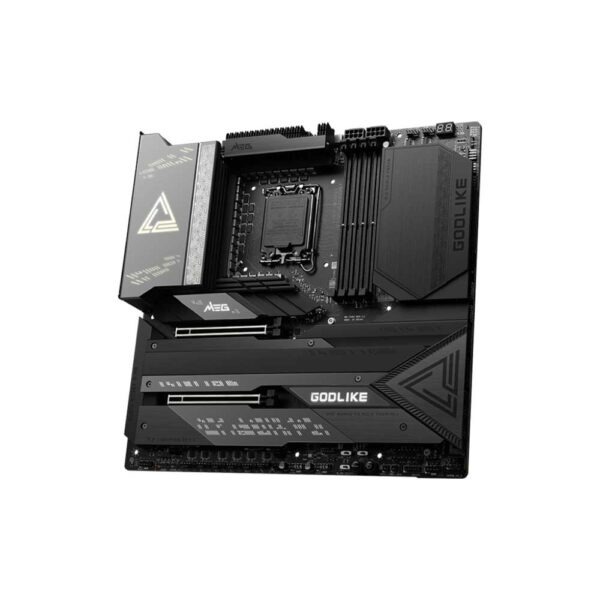

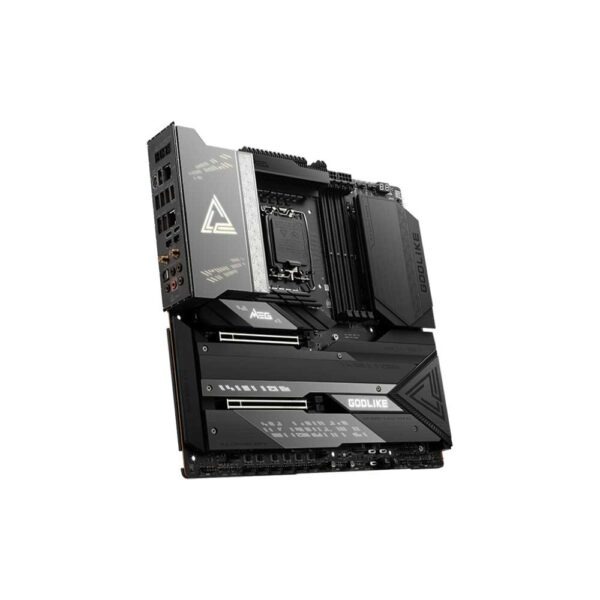

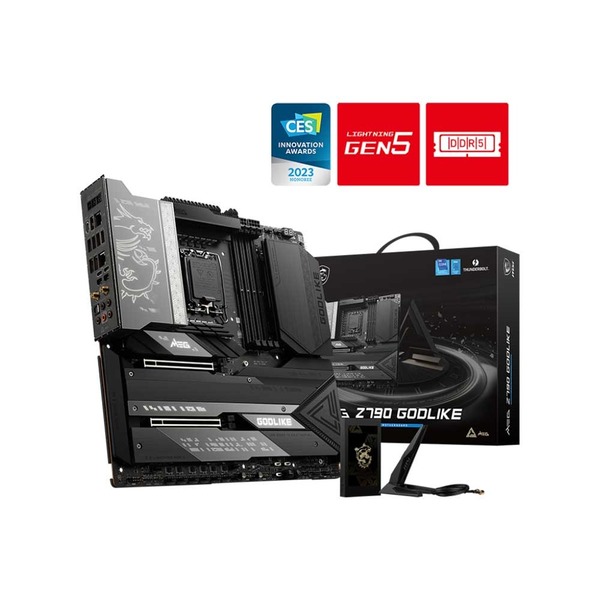

MSI MEG Z790 GODLIKE LGA1700 E-ATX MOTHERBOARD (MEG-Z790-GODLIKE)

• MSI MEG Z790 GODLIKE Supports 12th/ 13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
• M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
• Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
• Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
• Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
• Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G with one 60W USB Power Delivery.
• DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
• 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
• Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Feature

Designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and industry’s first M-Vision Dashboard, the MEG Z790 GODLIKE is developed to unleash the extreme gaming potential of the 14th and 13th Gen Intel® Core processor and is ready to rule the tournament once again.

EXTREME THERMAL & POWER SOLUTION

The heat dissipation module is one of the biggest contributors to keeping GODLIKE efficient and cool. The flagship and exclusive cooling solution make it unnecessary for gamers to worry about temperature problems.

LIGHTNING FAST STORAGE

Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.

Lightning Gen 5 M.2 solution delivers 12,311MB/s read speed and 11,507 write speed to meet the demanding hardcore users.

Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.

The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation
