MSI MEG X570S ACE Max (Wi-Fi) Motherboard
- Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
- Supports DDR4 Memory
- Mystic Light Infinity: Customize and set up your own color scheme with MSI Mystic Light, combining exclusive mirror reflection to generate the special endless light effects, the ACE makes your system come alive and infinity.
- Lightning Fast Game experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
- Dual LAN with latest Wi-Fi 6 solution: Onboard 2.5G plus Gigabit LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement

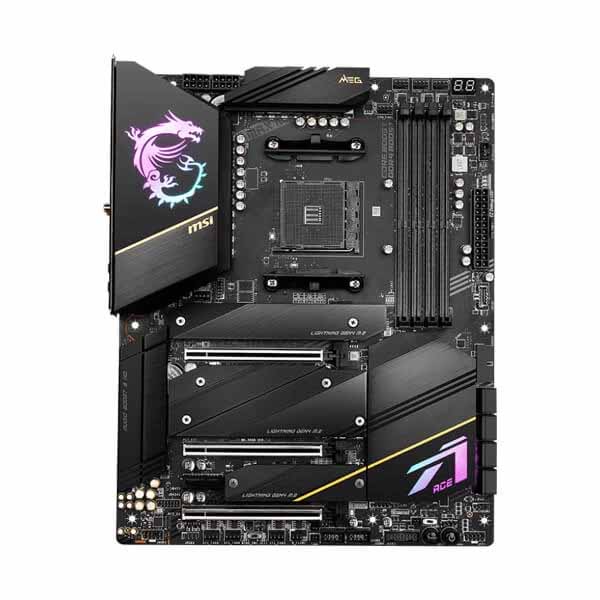

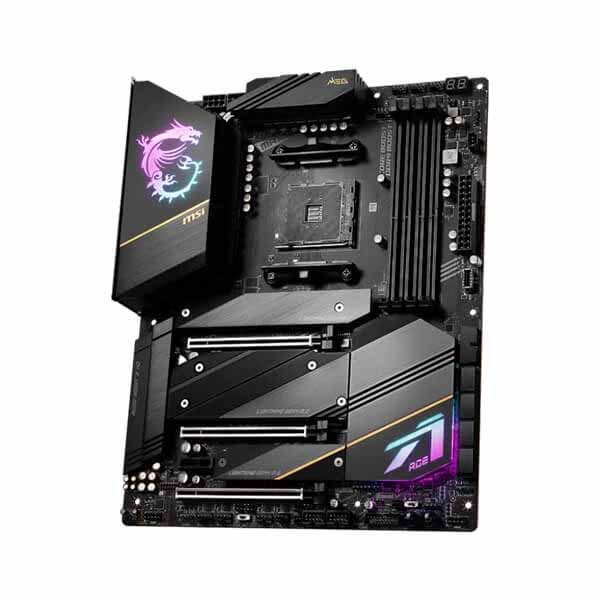

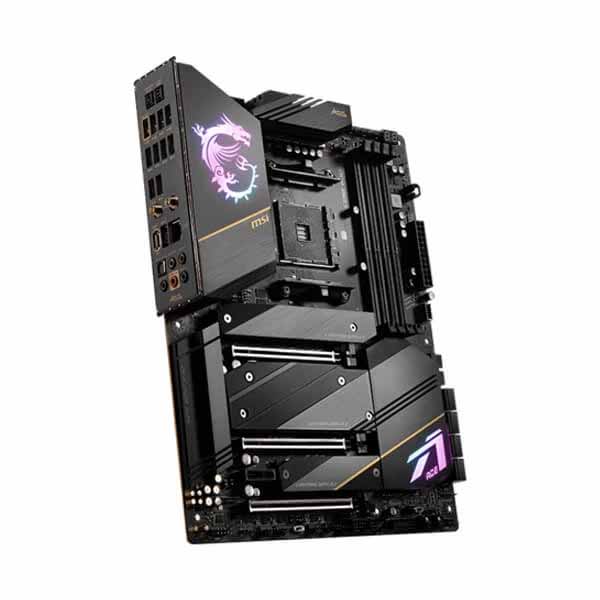

MSI MEG X570S ACE MAX ATX Gaming Motherboard AM4 DDR4, (7D50-001R)
Features:
- Msi MEG X570S ACE Max Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- MEG X570S ACE Max Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
- Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
- Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
- Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MEG X570S ACE MAX
Ace Your Enemy
Whether it’s overclocking RAM, CPU or GPU cards, custom ARGB lighting via Mystic Light or envelope-pushing visionaries looking for a powerful, future-friendly, system base, the MEG X570S ACE MAX offers an cutting-edge hardware stage for gaming immersion at the highest settings.
- Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, 2000 G-series processors (AM4)
- Direct Power Solution 16+2 Phase VRM with 90A SPS
- 4 x Lightning Gen4 M.2 slots with Double-sided Shield Frozr
- 3 x PCI-e 4.0 x16 slots (NVIDIA SLI & AMD CrossFire supported)
- 4 DIMMs with DDR4 Boost: Dual Channel (128GB Max. / 5300MHz OC)
- 2.5G LAN & Wi-Fi 6E AX210 & Bluetooth 5.2
- 7.1 HD Audio with Audio Boost 5 HD

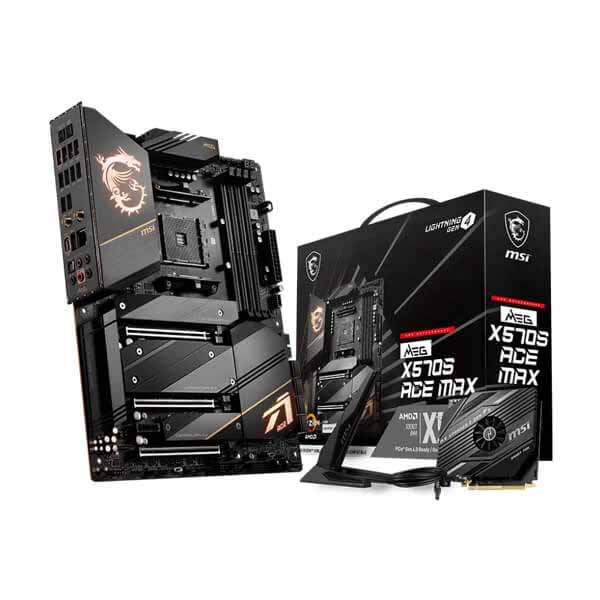

- M.2 XPANDER-Z GEN 4 S PCI-e x16 card included
X570 Chipset, Direct 16+2 Phase Power System, Premium Cooling, 3 x PCI-e 4.0 x16 Slots
|
|
|
|
|---|---|---|---|
Supports AMD Ryzen 5000 Series ProcessorsThe MEG X570S ACE MAX motherboard supports Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, 2000 G-series processors.
| 16+2 Direct Power Design with 90A SPSUnleash and sustain the maximum performance with MSI’s flagship VRM design built with a total of 16+2 direct power phases. Combining dual 8-pin power connectors and exclusive Core Boost technology, the MEG X570S ACE MAX motherboard is ready for the challenge of high-end processor overclocking. | Premium Cooling SolutionsVRM Cooling: Features an aluminum cover, connecting heat pipe, choke and 7W/mK thermal pads. PCB Cooling: A server-grade printed circuit board features 2 oz. thickened copper and MOSFET Baseplate for improved heat dissipation & reliability. SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. Chipset Cooling: New & enlarged passively-cooled chipset heatsink generates zero noise. | Fortified PCI-e 4.0 x16 SlotsMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
NVIDIA SLI & AMD CrossFire Technology supported |
Cutting-Edge Performance & Incredible Connectivity
|
|
|
|
|---|---|---|---|
Gen4 M.2 ConnectorsThe MPG X570S ACE MAX motherboard features MSI’s latest M.2 slots:

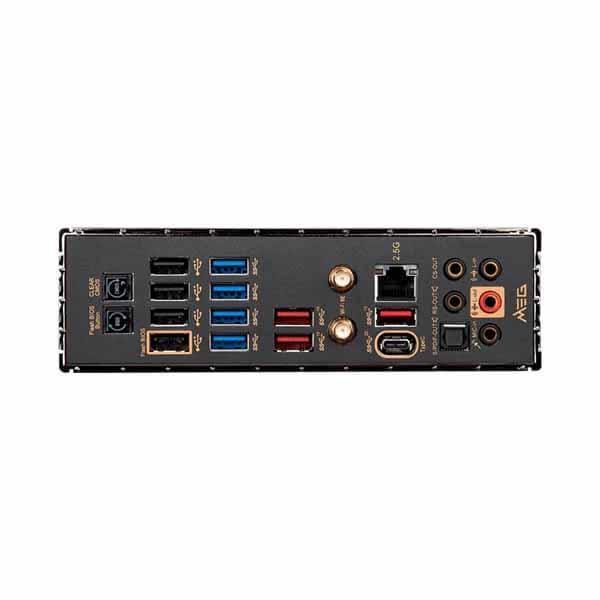

*M.2 specifications may vary depending on the CPU installed. | M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. | 4 x DDR4 Dual Channel (5300+ MHz OC)DDR 4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. A-XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability. | Wi-Fi 6E & Bluetooth 5.2Wi-Fi 6E: The latest Wi-Fi 6E solution supports 6GHz spectrum, while Bluetooth 5.2 offers data transfer speeds up to 2400Mbps. 2.5G LAN: A Realtek 8125B 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2: Enables ultra-fast 20Gbps data transfer rates between devices. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output. |
| Weight | 2 kg |
|---|---|
| Dimensions | 31 × 24 × 6 cm |
| Brands | MSI |
| Chipset | X570S |
| Motherboard Size | ATX |
| Socket | AM4 |
| Platform | AMD |
| Motherboard Series | MSI MEG |
| EAN / UPC Code | 4719072872397 |
| RAM Type | DDR4 |
| Warranty | 3 Years |
