MSI Mag Pano 110R PZ Mid Tower ATX Cabinet (Black)
Each Tree Have Lifetime CO2 Removal Capacity of 100 Kg
- Support Back-Connect ATX Motherboard
- Airflow Optimized
- Dual Layer Blades Fan
- Versatile Cooling Support
₹7,199
In stock
Notice any issues?
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
MSI Mag Pano 110R PZ Mid Tower ATX Cabinet (Black)
Feature
- Supported ATX and Micro-ATX Back-connect motherboard
- Supports 360 mm radiator on the top, side and bottom
- 270-degree panoramic tempered glass
- Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear
- Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission
SMART IN SPACING
The MAG PANO 110R PZ is a compact mid-tower case engineered for optimal airflow and compatibility. It supports up to 10 fans, with four pre-installed, and features enhanced venting for superior heat dissipation. Designed for flexibility, it accommodates GPUs up to 400mm and ATX/Micro-ATX back-connect motherboards. A 270-degree panoramic design highlights your build, while removable glass panels and an ARGB fan hub simplify installation and cable management.

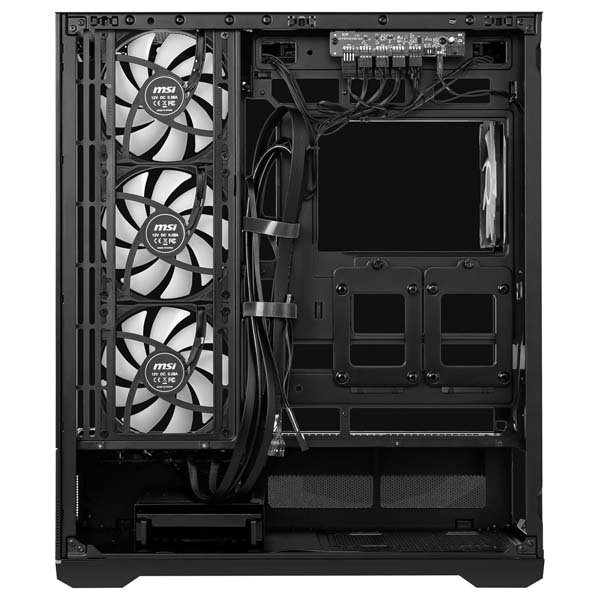

1-to-5 ARGB Fan Control Hub
This PC case includes a pre-installed 1-to-5 ARGB Fan Control Hub, simplifying cable management and ARGB lighting control.
Extensive Compatibility
The MAG PANO 110R PZ is a compact mid-tower case that offers ample space:
Motherboard support:
- Regular: ATX / Micro-ATX / Mini-ITX
- Back-connect: ATX / Micro-ATX
Component clearances:
- CPU Cooler height: 160 mm
- GPU length: 400 mm
- PSU length: Up to 200 mm
Extensive Cooling Support
The MAG PANO 110R PZ fan cooling options include:
- Top: 3 x 120 mm / 2 x 140 mm
- Front: NA
- Rear: 1 x 120 mm
- Side: 3 x 120 mm / 2 x 140 mm
- Bottom: 3 x 120 mm (Above the power shroud)
Pre-installed Fans:
- Side: 3 x 120 mm ARGB Fan (Reverse-blade)
- Rear: 1 x 120 mm ARGB Fan
Airflow Optimization
Increased number of vents on the sides and front of the case to enhance overall heat dissipation. Supports up to 10 fan installations and comes pre-installed with three reverse-blade fans on the side and one regular fan at the rear.

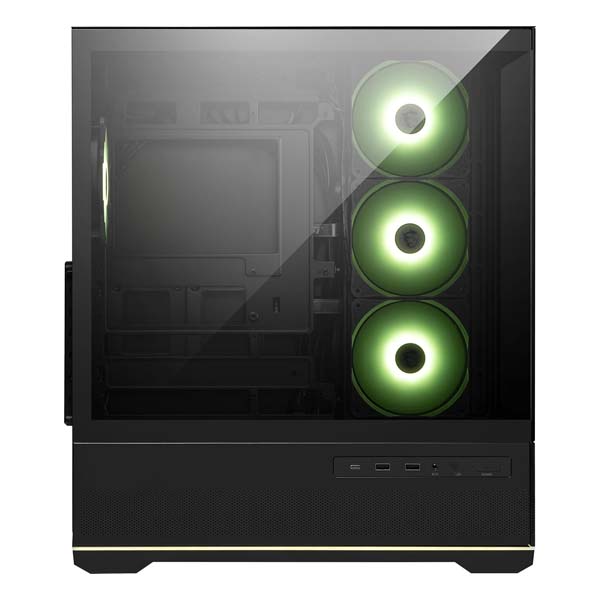

270-Degree Panoramic View
The case boasts a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
Drive Mount Support
The SSD bracket features a tool-less design, and the HDD cage is adjustable, allowing users to build systems with greater flexibility.
Storage options:
- 2 x 2.5″ SSD
- 2 x 3.5” HDD
- 2 x 2.5“ SSD / 3.5 ” HDD Combo Tray
Dust Protection
The case includes two removable filters on the top and bottom, helping protect internal components from dust buildup.
Panel I/O
The side I/O panel features a USB 20Gbps Type-C port for high-speed data bridging to compatible motherboards.
- 1 x USB 20Gbps (Type-C)
- 2 x USB 5Gbps (Type-A)
- Mic in / Audio out
- LED Switch Button
- Power Button
| Weight | 1 kg |
|---|---|
| Product Type | Normal |
| Color | Black |
| Brands | MSI |
| Case Form Factor | Mid Tower |
| Lighting Profile | ARGB |
| Motherboard Size | ATX |
| Radiator Size | 360mm |
| Warranty | 2 Year |
| EAN / UPC Code | 4711377293181 |
Specification
| Product Name | MAG PANO 110R PZ |
| Case Form Factor | Mid-Tower |
| Motherboard Form Factor Support | Regular: ATX / Micro-ATX / Mini-ITXBack-connect: ATX / Micro-ATX |
| I/O Ports | 1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) 1 x Audio-Out / Mic-in 1 x LED Button 1 x Power Button |
| Drive Mount Support | 2 x 2.5“ 2 x 3.5“ 2 x 2.5″/3.5″ combo |
| Expansion Slot | 7 |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 160 mm / 6.30 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm (Above the power shroud) |
| Pre-Installed Fan Type | Side: 3 x ARGB Fan (Reverse Blades Fan) Rear: 1 x ARGB Fan |
| Pre-Installed Fan SIze | Side: 3 x 120 mm Rear: 1 x 120 mm |
| Radiator Size Support | Top: 120 / 140 / 240 / 280 / 360 mm Front: NA Rear: 120 mm Side: NA Bottom: NA |
| Dimensions (DxWxH) | 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
