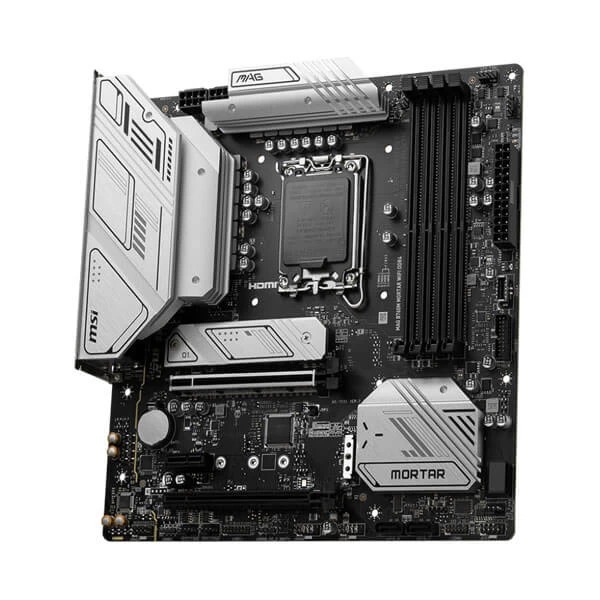

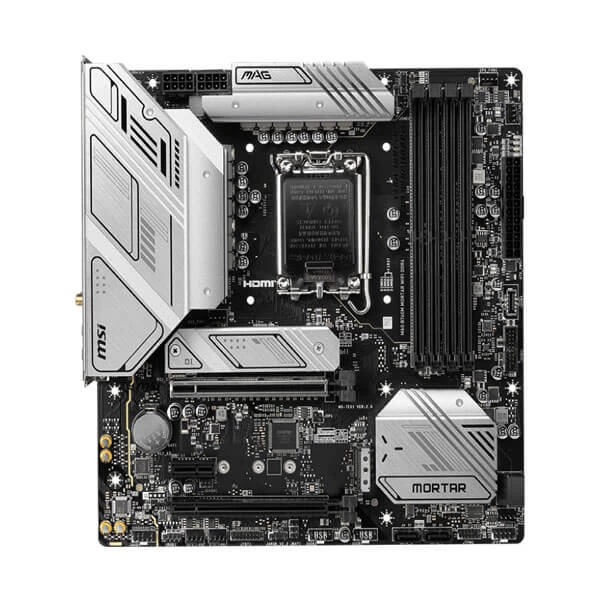

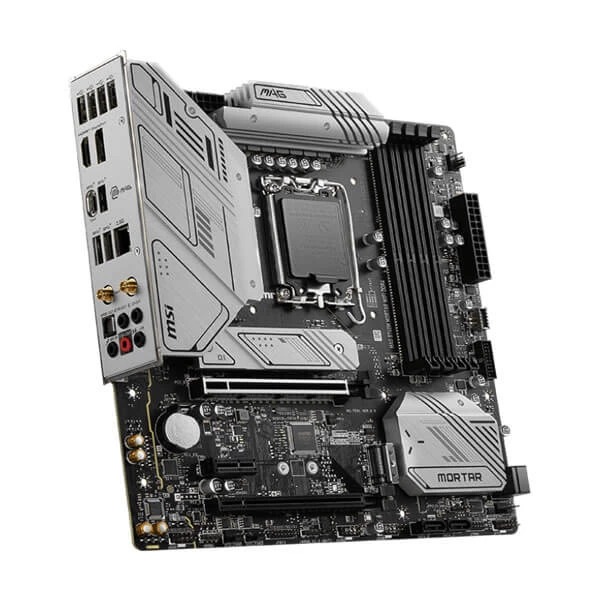

MSI MAG B760M Mortar Wi-Fi DDR4 Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Unite as One

The Msi MAG series fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 5333+(OC) MHz
• Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Water Cooling

Optimized for Water Cooling

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

Power Solution

Structure

12+1+1 Duet Rail Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.

• 12 Phase – Core Power DrMOS / 75A
• 1 Phase – GT Power
• 1 Phase – AUX Power

Double Power Connectors

Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

Digital Power Design

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

Core Boost

Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

PCB Design

Optimized PCB Solution

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 6 PCB layers
• IT150GS Server-grade PCB material
• 2oz Thickened Copper

Storage

Fast and Future-Ready Storage

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

• 2x Lightning Gen 4 M2 – 64 Gbps
• 4x – 6 Gbps

USB

Lightning USB 20G

Double Bandwidth with Lightning USB 3.2 Gen 2×2 20G

Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

Front USB Type-C

USB Front Type-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Memory

Enhancement

A Huge Step of DDR Performance

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B760. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

XMP

Easy Overclocking with XMP Profile

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

BIOS & Software

MSI Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Mystic Light

Create your own colourful masterpiece with ease. Splash any colour you want with just a few clicks!

Resizable Bar

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

Connectivity – Audio

Audio Boost

• High Definition Audio Processor
• High Quality Audio Capacitors
• High Quality Audio Jacks
• Isolated Audio Signal
• De-Pop Protection

Mystic Light

Synchronize

Extend Your RGB Experience with Ease

Add more colour if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

A-Rainbow V2

Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.

*Gen2 device only supports 7 RGB themes

RGB

Supports 12V RGB devices.

Ambient Link

Synchronize lighting theme with compatible lighting devices.

Networking

2.5G LAN & Wi-Fi 6E

High-Bandwidth and Low-Latency Network

MSI’s premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E
• Bluetooth 5.3
• 2.5G LAN
