MSI MAG B660M Mortar DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement

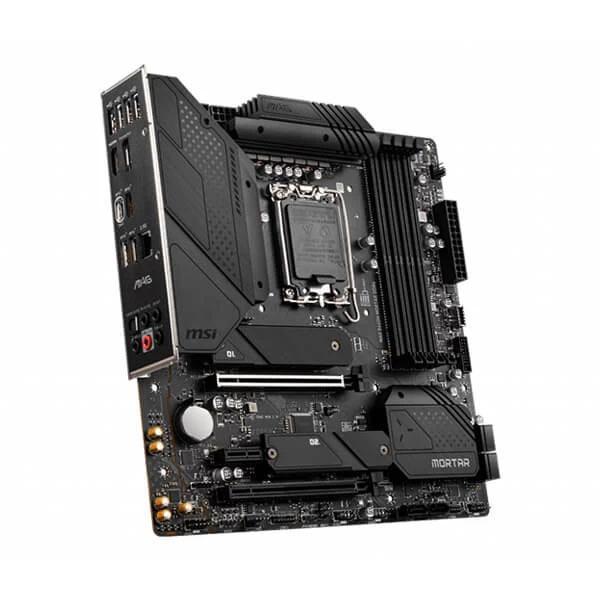

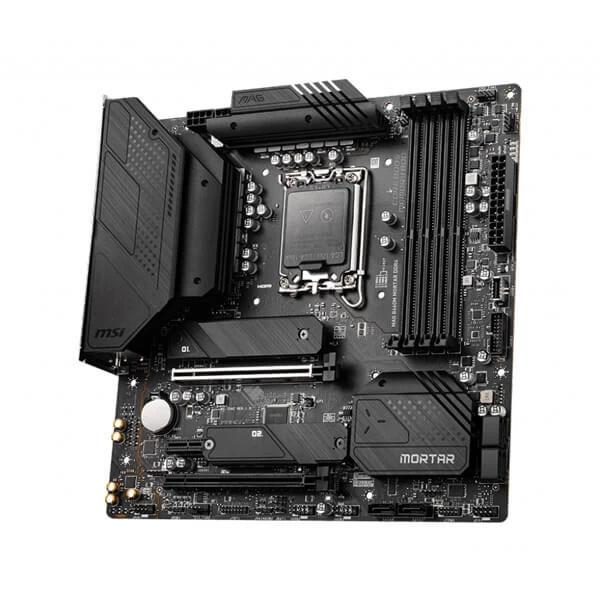

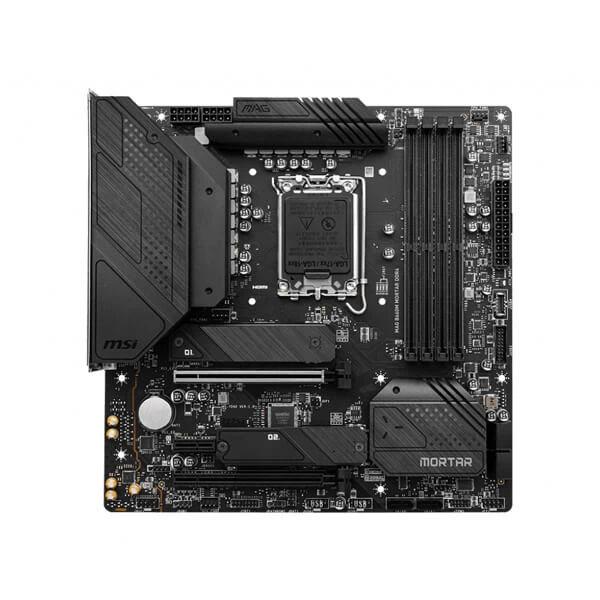

MSI MAG B660M Mortar DDR4 Intel Motherboard
Features:
- MSI B660M Mortar Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- B660M Mortar Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MAG B660M MORTAR WIFI DDR4
Conquer the Battlefield
The MAG B660M MORTAR WIFI DDR4 is a gaming oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with premium hardware.
- Supports Intel Core 12th Gen Processors (LGA 1700)
- 12 Duet Rail Power System (60A/DrMOS)
- 4 x DDR4 DIMMs, Memory Boost (4800MHz+ OC)
- 2 x Gen4 M.2 Slots with Shield Frozr
- 1 x PCI-e 4.0 x16 (Steel Armor), 1 x PCI-e 3.0 x16 Graphic Card Slots (AMD CrossFire Supported)
- 7.1 HD Audio with Audio Boost
- 2.5G LAN, Intel Wi-Fi 6 & Bluetooth 5.2
B660 Chipset, 12 Duet Rail Power System, Smart Cooling, DDR4 Memory Boost
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th Gen ProcessorsThe MAG B660M MORTAR WIFI DDR4 motherboard supports 12th Gen Intel Core processors.
Intel B660 chipset motherboards support memory overclocking but not CPU overclocking. | 12+1+1 Duet Rail Power SystemWith its dual 8 pin power connectors and exclusive Core Boost Technology (60A, DrMOS), the MAG B660M MORTAR WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings: 1. Digital PWM IC 2. 1-Phase AUX Power 3. 1-Phase GT Power 4. 12 Duet Rail CPU Power System | Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. | 4 x DDR4 Dual Channel (4800+ MHz Overclocked*)Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability. *1DPC 1R Max. overclocking frequency 4800+ MHz. |
PCI-e 4.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6 Connectivity
|
|
|
|
|---|---|---|---|
Fortified PCI-e 4.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
| Gen4 M.2 ConnectorsThe MAG B660M MORTAR WIFI DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):
*M.2 specifications may vary depending on the CPU installed. | M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. | Wi-Fi 6 & Bluetooth 5.22.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output. Wi-Fi 6: Features an Intel Wi-Fi 6 module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. |
| Brands | MSI |
|---|---|
| Chipset | B660 |
| Motherboard Size | mATX |
| Socket | LGA 1700 |
| Motherboard Series | MSI MAG |
| EAN / UPC Code | 4719072907907 |
| RAM Type | DDR4 |
| Warranty | 3 Years |
