MSI MAG A850GL PCIE5 White Gold ATX 3.1 Fully Modular Smps
Each Tree Have Lifetime CO2 Removal Capacity of 100 Kg
- ATX 3.1 compatible, native PCIe 5.0connector
- Supports NVIDIA® GeForce RTX™40 Seriesr gaphics cards
- Full modular design, Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
₹9,585
In stock
Notice any issues?
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement

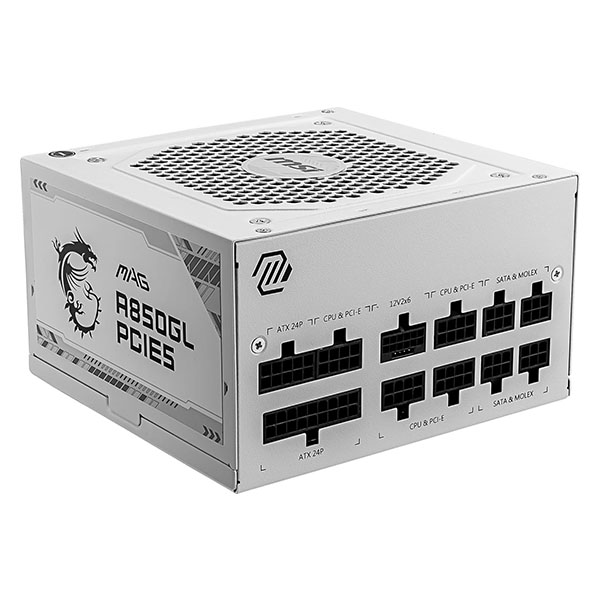

MAG A850GL PCIE5 WHITE
Overflow with Power
The MSI MAG A850GL PCIE5 WHITE power supply provides 80 PLUS Gold-certified power efficiency, ATX 3.0 compatibility, and PCIe 5.0 GPU support, cooled by a 120mm fluid dynamic bearing (FDB) fan for superior performance. Outfitted with a full-bridge LLC DC-to-DC topology, an extra-compact ATX frame, and a fully modular design, this PSU is ideal for spatially-efficient PCs requiring robust, no-nonsense performance.
80 PLUS Gold
The efficiency of a power supply directly influences system performance and power consumption.
An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.
ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the MAG A850GL PCIE5 WHITE power supply can hold up to 2x total power excursion and 3x GPU power excursion.
PCIe 5.0 GPU Support
Through the native 16-pin (12V2x6) PCIe connector, the PSU can provide up to 600W of power to a PCIe 5.0 GPU, and includes yellow highlights to help identify a loose connection.
Extra GPU power feeds (8-pin VGA connectors) support a broad array of NVIDIA and AMD graphics cards.
Extra Compact Size
A compact 140mm-long and 150mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.
Flat Cables
Flat modular cables help reduce clutter, improve airflow, and create a cleaner build. Keep the extra cables in an included storage bag.
Fluid-Dynamic Bearing Fan
A 120mm Fluid-Dynamic Bearing (FDB) fan offers reliable cooling performance that balances both noise and temperature output.

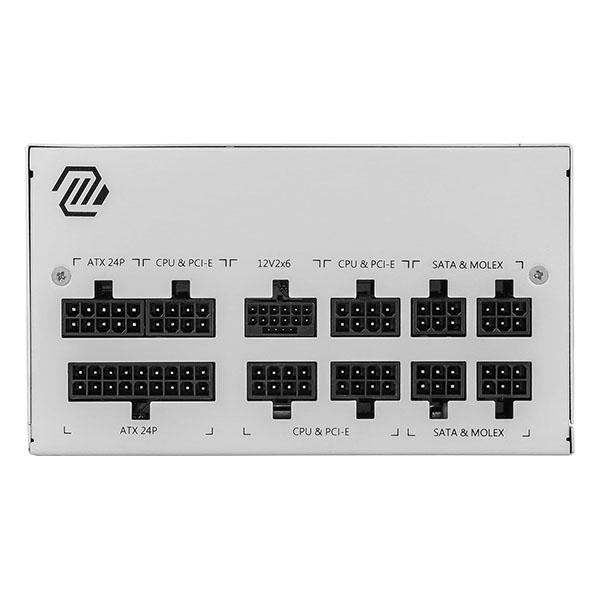

Extensive Connectivity
A wide range of connectivity options provides extensive hardware support.
Connect and upgrade multiple hard drives, SSDs, graphics cards and other components quickly and easily.
Output Specifications
Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.
A full-bridge LLC with DC-to-DC converter includes an active PFC design (OCP, OVP, OPP, OTP, SCP, UVP).
Specification
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 120mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 850W |
| Power Excursion | 1700W (*up to 200% of the PSU’s rated power for 100μs) |
| Input Frequency Range | 47-63Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 8 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
| Warranty | 7 Years |
| Note** | *** Images are for Representation purposes only**Prices, Specifications & Features are subject to change without notice |
