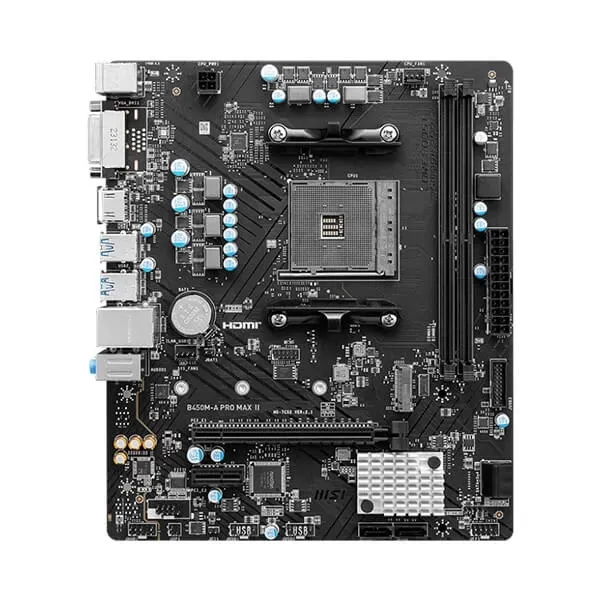

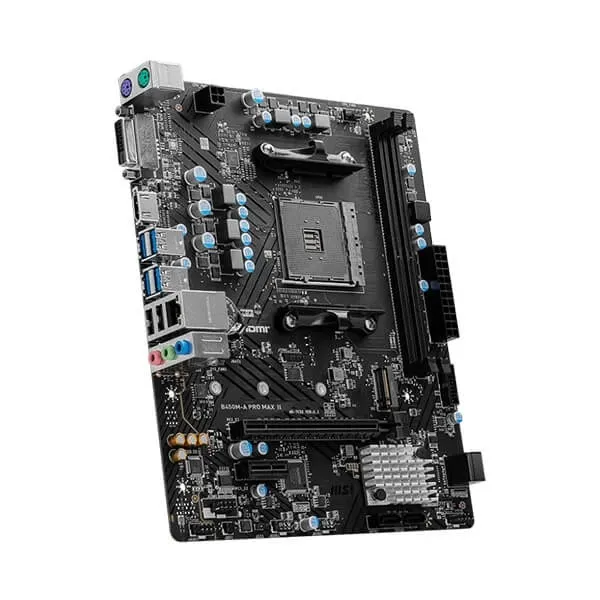

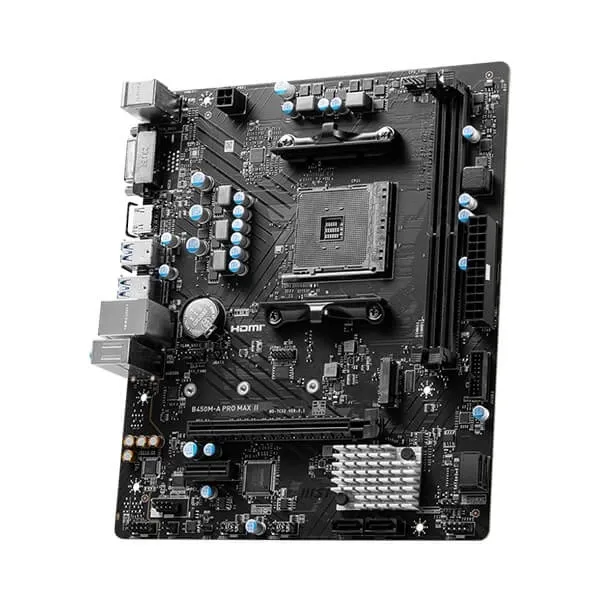

MSI B450M-A Pro Max II AMD mATX Motherboard
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 2
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 3
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 4
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 5
MSI B450M-A Pro Max II AMD mATX Motherboard
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 2
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 3
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 4
MSI B450M-A Pro Max II AMD mATX Motherboard - Image 5

MSI B450M-A Pro Max II AMD mATX Motherboard

🌱 Environmental Impact
🌳 0.59 Trees Planted on This Purchase♻️ 59kg Offset
Small contributions are grouped with other orders for planting 1 Tree 🌿
Each Tree Have Lifetime CO2 Removal Capacity of 100 Kg
MSI
✈️ Estimate Delivery:
48 People watching this product now!
16 Items sold in last 3 hours
  • Micro-ATX Form Factor
  • AMD B450 Chipset
  • AM4 Socket
  • 2 x Dual-Channel DDR4-4133 (OC)
  • 4 x SATA III, 1 x M.2
  • 1 x PCIe 3.0 x 16 Slot
  • 1 x PCIe 2.0 x 1 Slot
  • Realtek ALC897 Codec & MSI Audio Boost
  • 2.5 GbE LAN
  • X-Boost Software

₹5,889

₹898 GST Included in the Price

You can claim GST with B2B Billing Enter GST No at Checkout

In stock

SKU: MSI B450M-A PRO MAX II Category:
Compare
Add to wishlist

Notice any issues?

Missing Product?

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

1-5 Working Days

  • Official Brand Warranty (Check with Manufacturer)
  • 3 Days DOA Replacement
Description

MSI B450M-A PRO MAX II Motherboard, Micro-ATX, AM4 DDR4 USB 3.2 Gen 1 HDMI

MSI B450M-A PRO MAX II is an AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1. This motherboard supports DDR4 Memory, up to 4133 (OC) MHz.

Features:

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

  • Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon with Radeon Vega Graphics desktop processors
  • Supports DDR4 Memory, up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

AM4 Socket and B450 Chipset

The B450 chipset and AM4 socket provide compatibility and optimal performance for Ryzen 1000 to 5000 series processors.

Realtek ALC897 Codec & MSI Audio Boost

Enjoy studio-grade sound quality with the Realtek ALC897 codec and MSI Audio Boost.

2.5 GbE LAN

Benefit from Ethernet speeds up to 2.5 Gb/s thanks to the 2.5 GbE LAN port.

X-Boost Software

Easily maximize the performance of your storage drives with the X-Boost software.

Connect Plenty of Devices

Connect plenty of USB devices, legacy devices, and monitors with 12 USB ports (six USB-A 3.2 Gen 1 and six USB-A 2.0), two PS/2 ports, an HDMI port, and a DVI port.
Additional information
Weight1 kg
Product Type
ColorBlack
Brands
Memory SeriesDDR4
Motherboard SizemATX
SocketAM4
Warranty
EAN / UPC Code4711377125291
Specifications

Specifications

ModelB450M-A PRO MAX II
ChipsetAMD B450
CPU SUPPORTSupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors Socket AM4
Memory
  • 2x DDR4, Maximum Memory Capacity 64GB
  • Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
  • Supports Dual-Channel mode
  • Supports non-ECC, UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Onboard Graphics
  • 1x HDMI™

Support HDMITM 1.4, maximum resolution of 4K 24Hz*

  • 1x DVI

Support DVI-D, maximum resolution of 1920×1200 60Hz

EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Storage1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LANRealtek® 8125 2.5Gbps LAN controller
AudioRealtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports

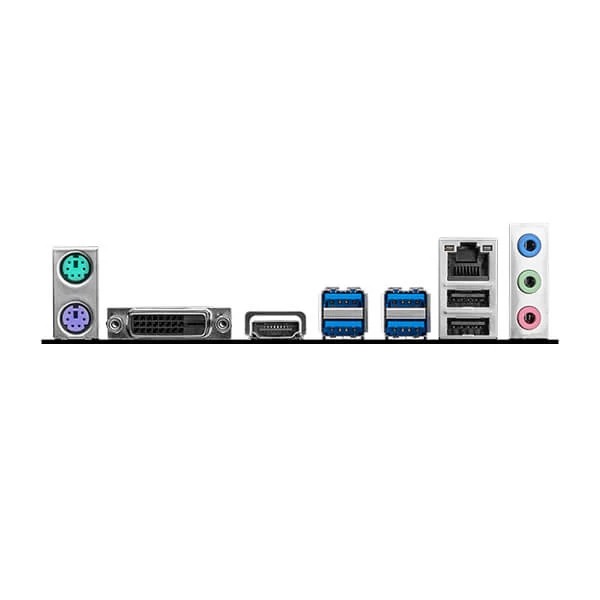

BACK PANEL PORTS
  • Keyboard/Mouse
  • DVI-D
  • HDMI™
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Audio connectors
  • USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)mATX 200mmx236mm
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.
