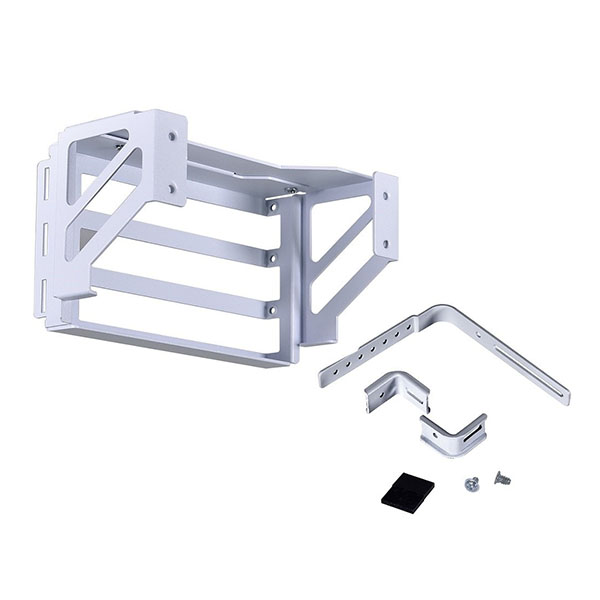

LIAN LI O11DE-2W Upright GPU Bracket Kit for O11 Dynamic Evo Cabinet (White)

LIAN LI O11DE-2W Upright GPU Bracket Kit for O11 Dynamic Evo Cabinet White

Lian li O11D EVO Upright GPU kit

Show off your graphics card in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.

Available in 2 colours

Optimised for direct cooling

Supreme water-cooling configuration

Normal mode

Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.

Ultimate air-cooling configuration

Normal mode

Paired with the right GPU kit, the front mesh kit (sold separately) provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.

Support wide variety sized GPUs

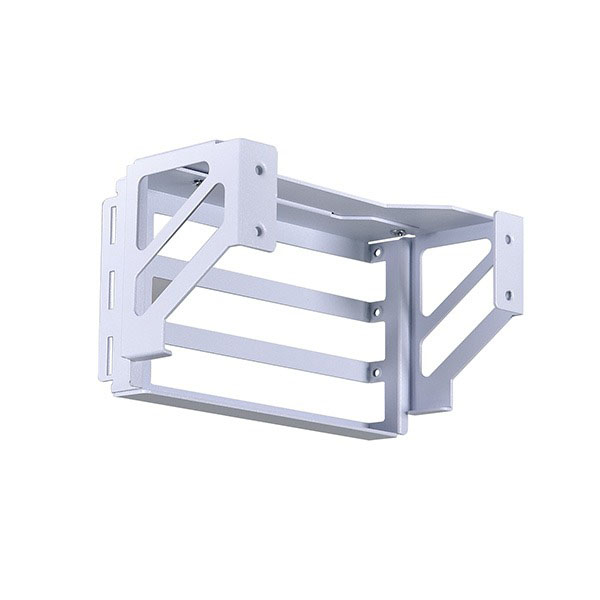

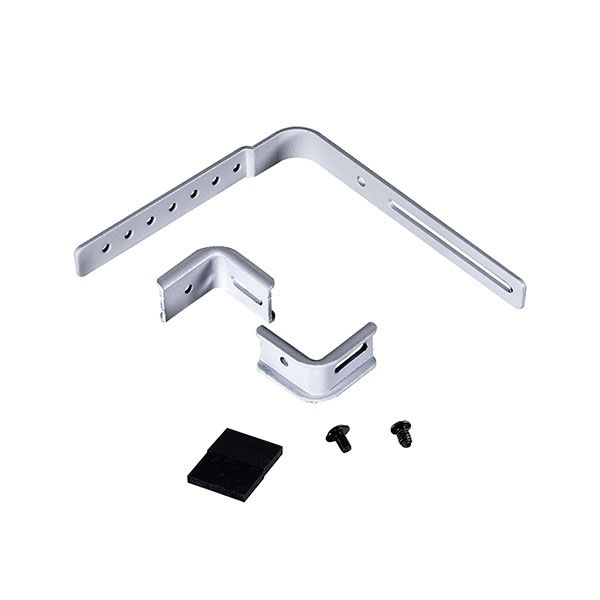

While the breacket supports up to 3 slots thick GPUs, thin GPUs can be mounted at the second slow. In addition, the L-type support bracket can be adjusted according to the GPUs width and thickness.

Note: 1. Must switch the side fan bracket to the drive tray.
2. Plug the display cable to the graphics card before installing the upright GPU on the chassis.

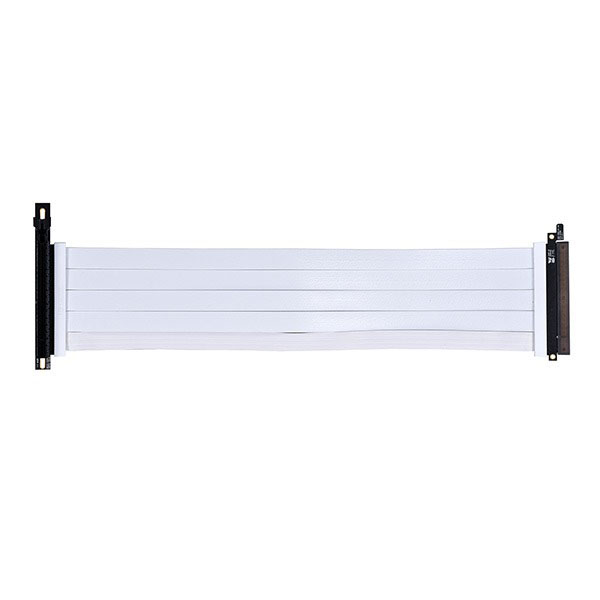

Gen 4.0 PCIe riser cable

The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed ,offering great performances.

Note: Make sure the GPU PCIe connector is fully inserted into the PCIe riser cable socket and motherboard PCIe slot when powered off. Circuit short may occur and cause the hardware damages if not installed properly.

Fan and radiator compatibility

When installing a three-slot thick GPU in the upright position, the radiator width clearance beside the bracket is limited to 130mm, and 120mm fans.
