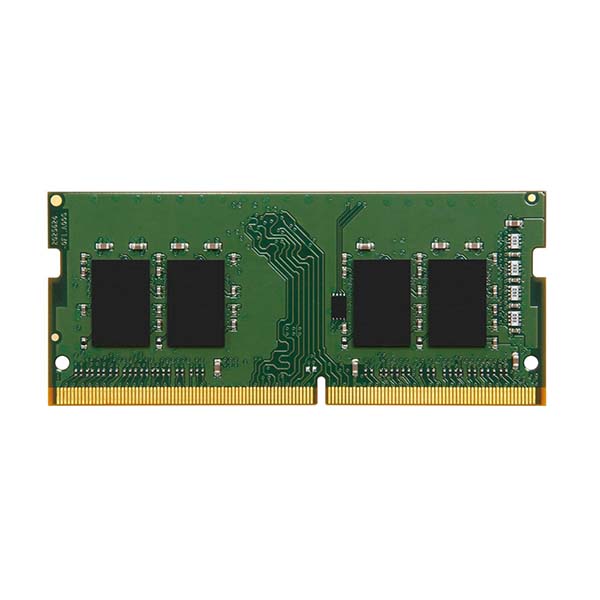

Kingston 8GB (1 X 8GB) PC3L DDR3 1600MHz SODIMM Laptop RAM (KVR16LS118)

Kingston 8GB PC3L DDR3 1600MHz Laptop RAM (KVR16LS118)

Feature

• One 8GB module of 1600MHZ DDR3 laptop memory
• Backed by a lifetime warranty and free technical support
• From the industry leader in PC memory
• Designed and tested for compatibility
• Intel laptop memory KVR16LS11 8
• Lifetime Warranty(Max 10 Years)
• Bi-directional Differential Data Strobe

Kingston ValueRAM’s 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows

Key Feature

The Kingston 8GB DDR3 RAM is specifically designed for laptops.

It enhances overall laptop performance, making it suitable for day-to-day tasks, gaming, and demanding applications.

The RAM module consumes less power while delivering high-quality performance.

It operates at a frequency of 1600MHz and uses DDR3 technology.

With a lifetime warranty and free technical support, Kingston ensures reliability.

The module improves multitasking, software support, and interface smoothness.

It’s compatible with most laptops running a 64-bit OS.

The DDR3 architecture balances power efficiency and performance.

Key Specs

• JEDEC standard 1.35V and 1.5V Power Supply
• VDDQ = 1.35V and 1.5V
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• mOn Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component
