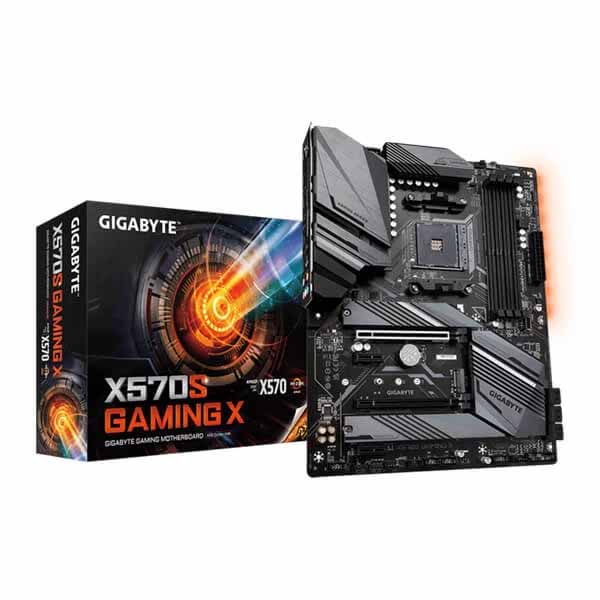

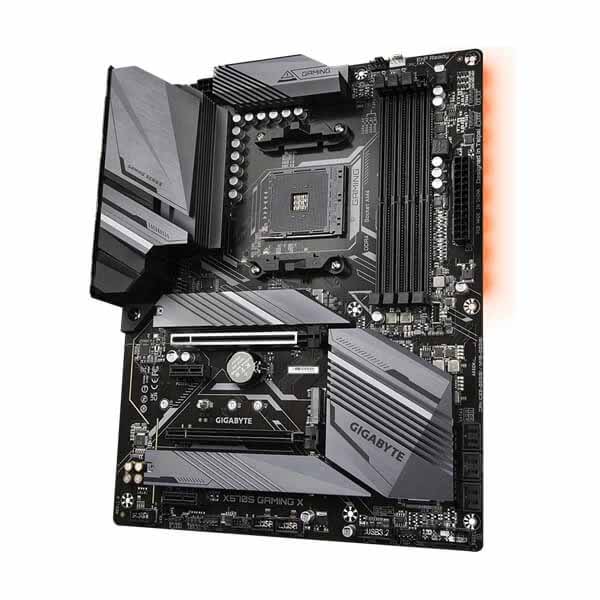

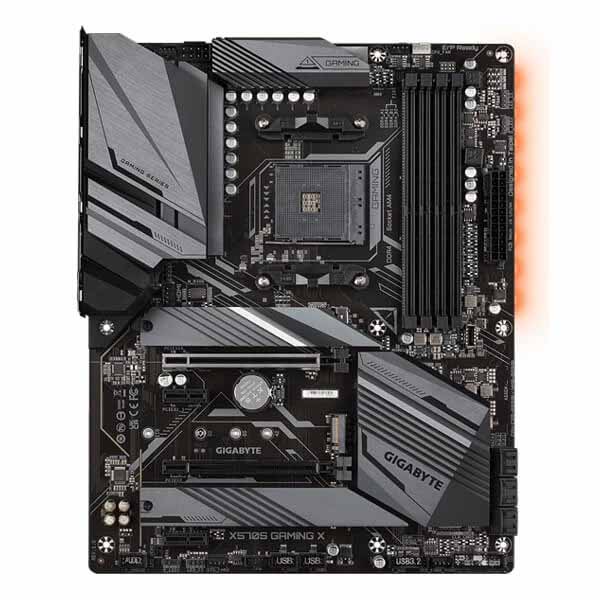

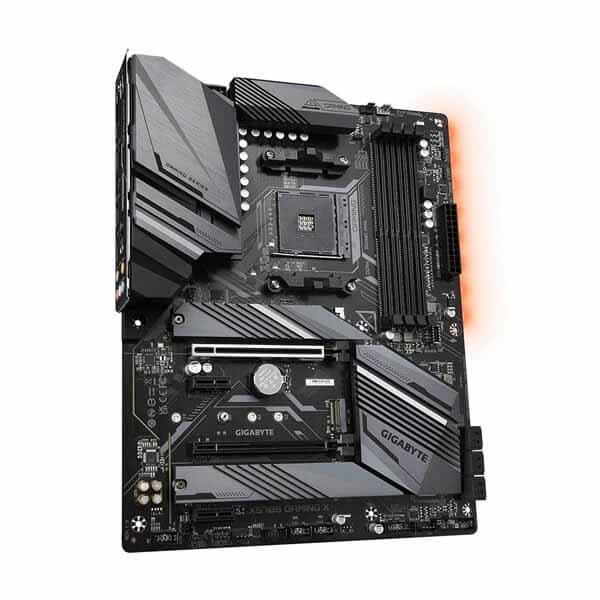

Gigabyte X570S Gaming X Motherboard
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- Fast 2.5GbE LAN with Bandwidth Management
- Rear and Front USB3.2 Type-C for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
AMD® X570S Gaming X GAMING Motherboard with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Fast 2.5GbE LAN, 2*USB 3.2 Type-C®, Rear & Front USB 3.2 Type-C®, RGB FUSION 2.0, Q-Flash Plus
Features:
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- Fast 2.5GbE LAN with Bandwidth Management
- Rear and Front USB3.2 Type-C for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Twin Power Design: GIGABYTE X570S Gaming X Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.
Headers & Sensors:
- 6 PWM/DC Fan Headers
- 6 Internal Temperature Sensors
Cooling Features
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 6 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users’ specified temperature point
First adopter on 2.5gbe LAN onboard
X570S Gaming X is 2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

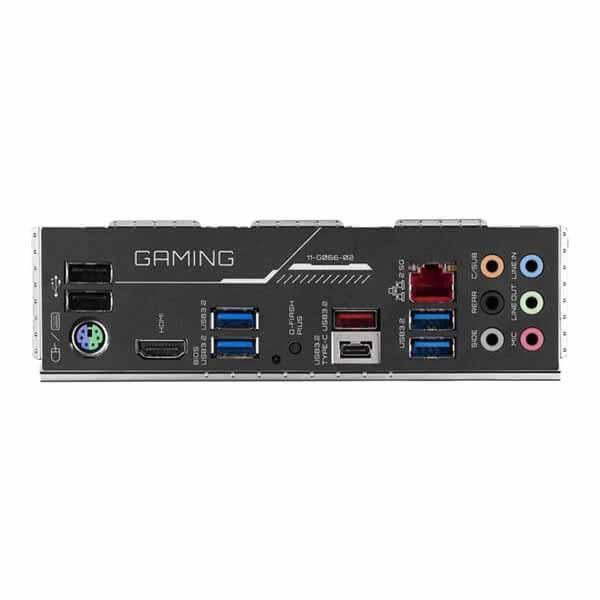

X570S Gaming X is Including both front and rear USB Type-C connectors with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C® and the traditional USB Type-A connector for better compatibility over a wider range of devices.
Hi-Fi Audio:
- High-End Audio Capacitors: GIGABYTE X570S Gaming X motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
- Audio Noise Guard: GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
GIGABYTE Patented Double Locking Bracket:
Solid Pin Power Connectors
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
| Brands | Gigabyte |
|---|---|
| Chipset | X570S |
| Color | Black |
| Motherboard Size | ATX |
| Socket | AM4 |
| Product Type | Gaming |
| Memory Series | DDR4 |
| Platform | AMD |
| Motherboard Series | Gigabyte Gaming |
| Warranty | 3 Years |
| EAN / UPC Code | 4719331806422 |
| RAM Type | DDR4 |
