Gigabyte UD1300GM PG5 1300W 80 Plus Gold Power Supply
- 1300W Capactiy with Single +12V Rail
- Supports PCIe Gen 5.0 graphics cards (12+4 Pin) & Intel ATX 3.0 Certified
- 80 Plus Gold Certified
- ATX Form Factor
- Fully Modular Design
- Japanese Capacitors
- 140mm Smart Hydraulic Bearing Fan
- OVP/OPP/SCP/UVP/OCP/OTP Protection
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
GIGABYTE UD1300GM PG5 – PCIe5.0 Ready – ATX3.0 – 1300W 80 Plus Gold Certified – Fully Modular Power Supply
Support PCIe Gen 5.0 graphics card
The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
HIGH QUALITY
JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.

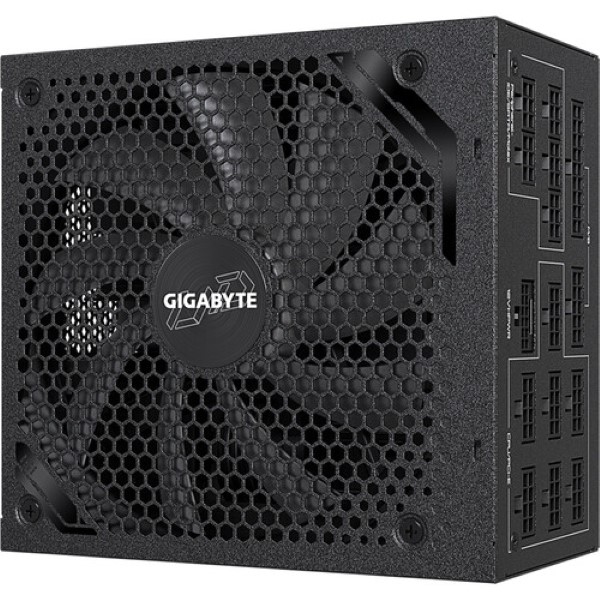

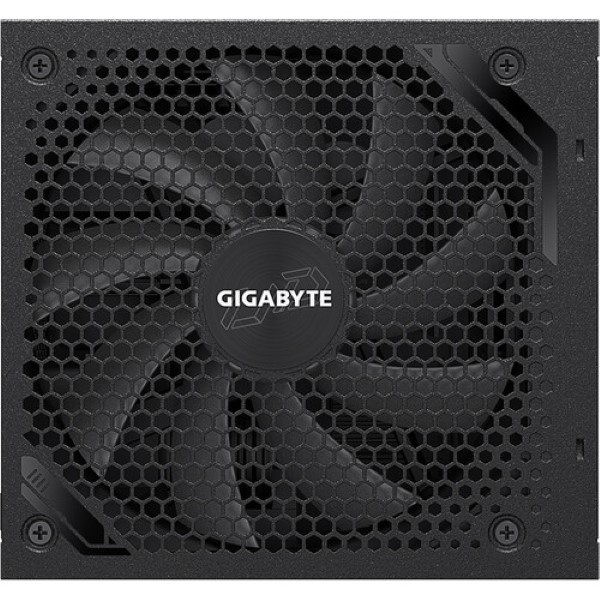

140mm DOUBLE BALL
BEARING FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The double ball bearing fan provides longer and more stable life time.
COMPACT DESIGN
Leveraging the engineers’ excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

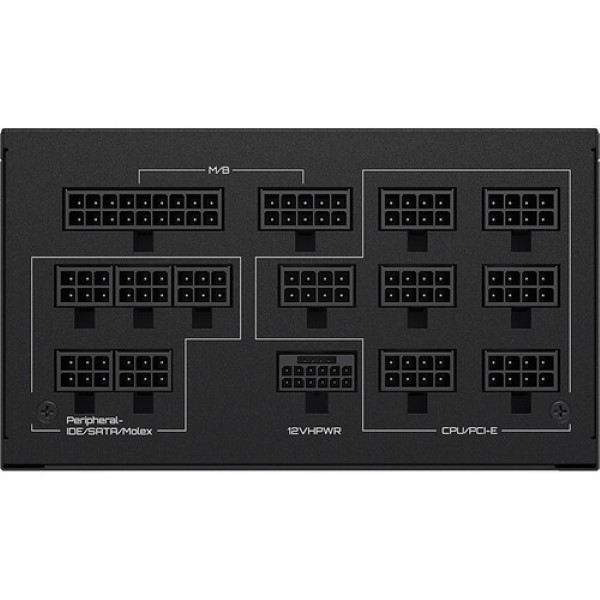

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
PLENTIFUL POWER SUPPLY
The +12VHPWR and the +12V can provide a total of 1300W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.
| Weight | 2 kg |
|---|---|
| Brands | Gigabyte |
| Color | Black |
| Modular | Fully Modular |
| PSU Certification | Gold |
| Warranty | 10 Years |
| Wattage | 1300 W |
| EAN / UPC Code | 4719331553388 |
