GIGABYTE Q670M D3H (rev. 1.0) DDR4 Micro ATX Motherboard

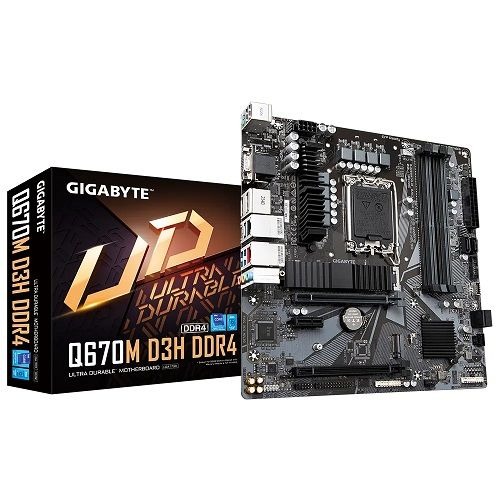

GIGABYTE Q670M D3H DDR4 (rev. 1.0) DDR4 Micro ATX Motherboard ( Intel LGA1700 Socket, Support 12th Generation Intel Core, Pentium Gold and Celeron Processors, 4 x DDR4 RAM Slots, Max 128 GB RAM)

Feature

• Gigabyte Supports Intel^® Core™ 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
• 6+1+1 Phases Hybrid Digital VRM with MOS Heatsink​​
• Dual GbE LAN with Bandwidth Management​​
• Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with One Thermal Guard
• Rear USB 3.2 Gen 2 Type-C^® for Fast and Versatile Connections​​
• High Quality Audio Capacitors and Audio Noise Guard​
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
• Support Intel^® vPro™ Technology

6+1+1 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

1. 6+1+1 Phases Low RDS(on) MOSFETs
2. Solid capacitors to improve transient response and minimize oscillation
3. 8-pin Solid Pin CPU Power Connector

PCIe 4.0 Design

GIGABYTE Q670 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

2x PCIe 4.0 M.2 Slots

DDR4 XMP

Support for DDR4 XMP Up to 5333MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

Dual PCIe 4.0 x4 M.2 Connectors with Thermal Guard

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new ” CPU Upgrade ” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

GAMING MAX PERFORMANCE

M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Thermal Throttling As Temperature Rises

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors

 4 PWM/DC Fan Headers

 6 Internal Temperature Sensors

Cooling Features

• High Current Support

  Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

• Precision Control

  Up to 6 temperature/fan speed control points for precise fan curve

• Dual Curve Mode

  Slope/Stair dual mode for different user scenario

• Fan Stop

  Fan can stop completely below users’ specified temperature point

Dual Intel^® GbE LAN with Bandwidth Management

Dual Intel^® GbE LAN features with network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Connecting the Future – USB 3.2 Gen 2 Type-C^®

The World’s Next Universal Connector

The USB Type-C^® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen 2 support for 10Gb/s transfer speed. Powered by the Intel^® USB 3.2 Gen 2 controller, this little port provides the best USB Type-C^® experience possible.

HDMI 2.0 for 4K UHD Display and HDCP 2.2 supported

HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors

Q670 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

1. Larger contact area for electricity
2. More metal quantity to sustain higher power and generated heat
3. Ultra durable and longer lifespan

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

EasyTune™

GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
