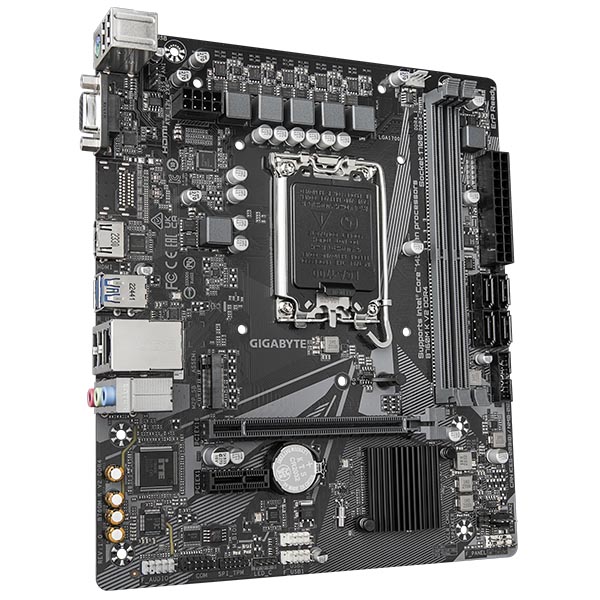

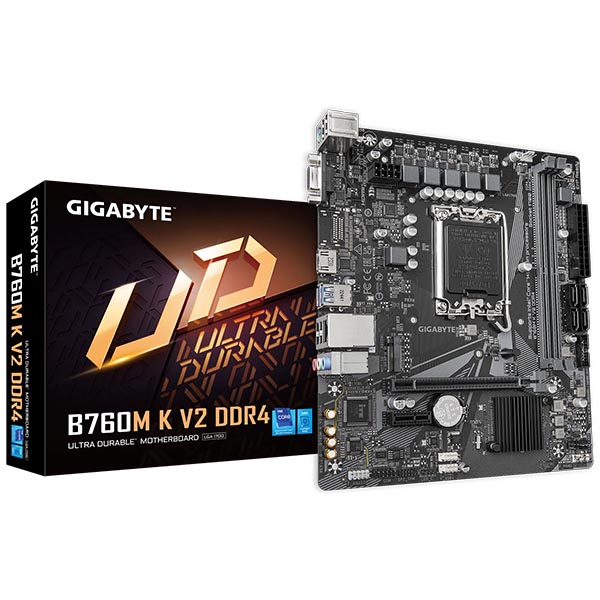

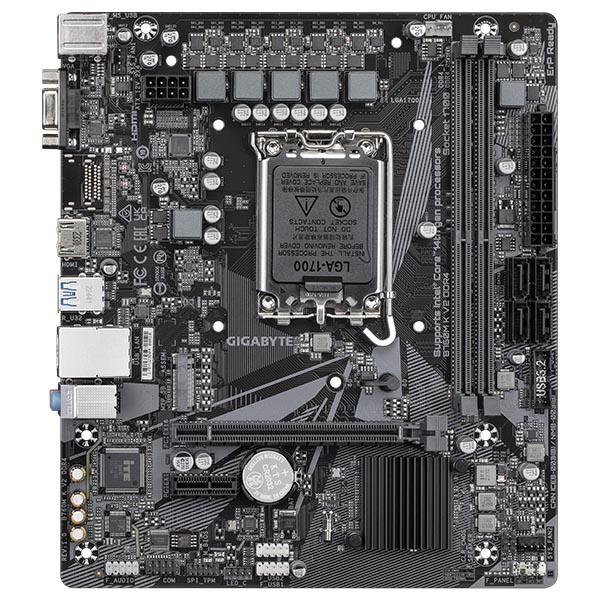

Gigabyte B760M K V2 DDR4 MATX Motherboard
✈️ Estimate Delivery:
177
People watching this product now!
25
Items sold in last 3 hours
- Supports Intel® Core™ 14th /13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
Description
Gigabyte B760M K V2 DDR4 MATX Motherboard
Feature
- Gigabyte Supports Intel® Core™ 14th /13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Solid Pin Power Connector
- 8 pin CPU Power Connector

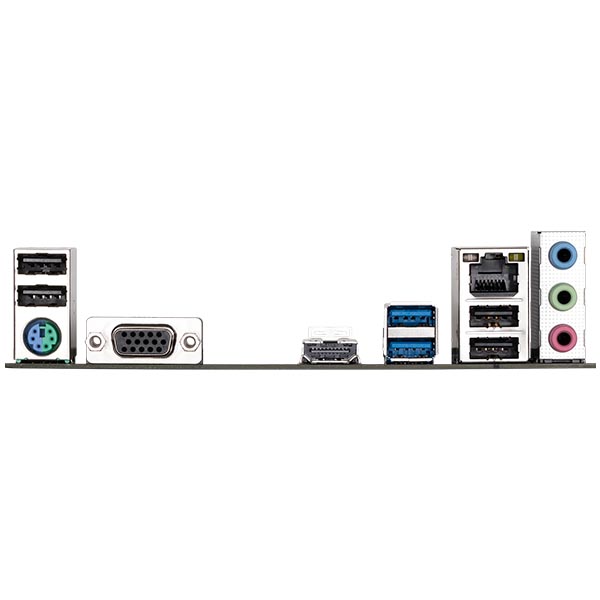

D-Sub
HDMI
USB 3.2 Gen1
GbE LAN
M.2 Connector
- 1 x PCIe 3.0 x4 M.2
Audio Solutions
- 8-ch HD Audio
- Audio Noise Guard
- High-End Audio Capacitors
6+1+1 Phases Hybrid Power Design
- 50A Low RDS(on) MOSFETs
- PCIe 4.0 Ready PCB
Supports 14th/13th/12th Gen. Intel Core™ Processors
4 x SATA 6Gb/s
Dual Channel DDR4, 2 DIMMs
PCIe 4.0 Design
- 1 x PCIe 4.0 x16 slot
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 6+1+1 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
Single 32GB Support
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
- High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control
Up to 7 temperature/fan speed control points for precise fan curve
- Dual Curve Mode
Slope/Stair dual mode for different user scenario
- Fan Stop
Fan can stop completely below users’ specified temperature point
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
- Deactivate all E-Core
- Zero compromise on gaming performance
- Up to 20% lower CPU package power
- Up to 5°C lower CPU temperature
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
* Photos are for reference only. Product features may vary by model.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
Additional information
| Weight | 1 kg |
|---|---|
| Product Type | Normal |
| Color | Black |
| Brands | Gigabyte |
| Memory Series | DDR4 |
| Platform | Intel |
| RAM Type | DDR4 |
| Socket | LGA 1700 |
| Warranty | 3 Years |
| EAN / UPC Code | 4719546973301 |
