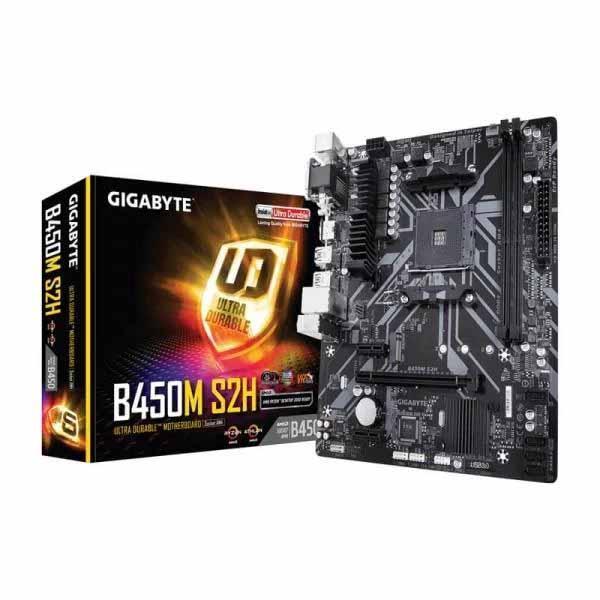

Gigabyte B450M S2H Motherboard

Gigabyte B450M S2H Motherboard

Features

Gigabyte B450M S2H Ultra Durable Motherboard with Digital VRM Solution, GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, RGB LED Strip Header, Anti-Sulfur Resistor Design, CEC 2019 Ready

• Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• Feature Digital VRM Solution with Low RDS(on) MOSFETs
• HDMI, DVI-D, D-sub Ports for Multiple Display
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• RGB Fusion supports RGB LED Strips in 7-Colors
• High Quality Audio Capacitors and Audio Noise Guard Design
• Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click

The Gigabyte B450M S2H is a micro-ATX motherboard designed for use with AMD Ryzen processors. It features the AMD B450 chipset, which provides support for advanced features such as PCIe 3.0, USB 3.1, and NVMe storage.

This motherboard has two DIMM slots that can support up to 32GB of DDR4 memory at speeds of up to 3200MHz. It also has one PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots for expansion.

In terms of storage, the Gigabyte B450M S2H has four SATA 3 ports and one M.2 slot that supports NVMe PCIe SSDs for faster data transfer speeds. It also has a Realtek Gigabit LAN controller for Ethernet connectivity, as well as six USB ports (four USB 3.1 and two USB 2.0) for connecting peripherals.

Other notable features of the Gigabyte B450M S2H include Realtek ALC887 audio with high-quality capacitors for improved sound quality, Smart Fan 5 technology for advanced fan control, and RGB Fusion 2.0 support for customizable RGB lighting. Overall, the B450M S2H is a solid choice for a budget gaming PC build or a basic workstation.
