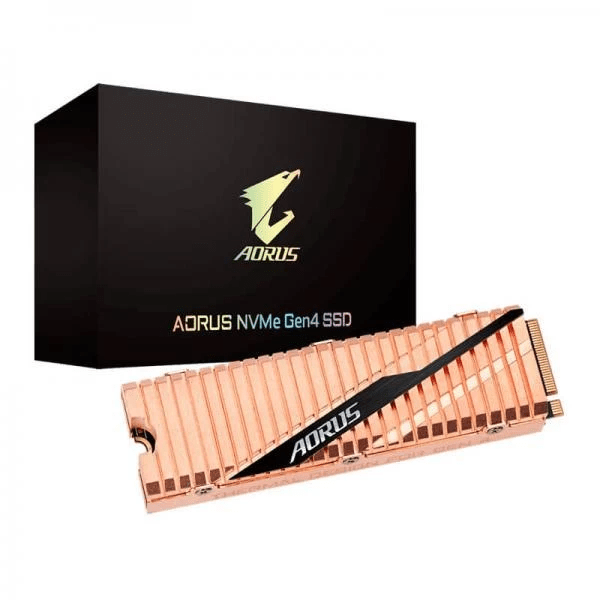

Gigabyte Aorus ASM2NE6500GTTD 500GB M.2 NVMe Gen4 With COPPER Heatsink

AORUS NVMe Gen4 SSD 500GB GP – ASM2NE6500GTTD

World First PCIe 4.0×4 Controller

The World First PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM cache, and a PCIe 4.0×4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

NAND Flash Selected for High Quality and Performance

TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s)

Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS ASM2NE6500GTTD NVMe Gen 4 SSD far exceeds that of PCIe 3.0×4 devices for superior storage performance.

Xtreme Storage Performance

With the new PCIe 4.0 controller, Gigabyte AORUS ASM2NE6500GTTD NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 2,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics-intensive rendering.

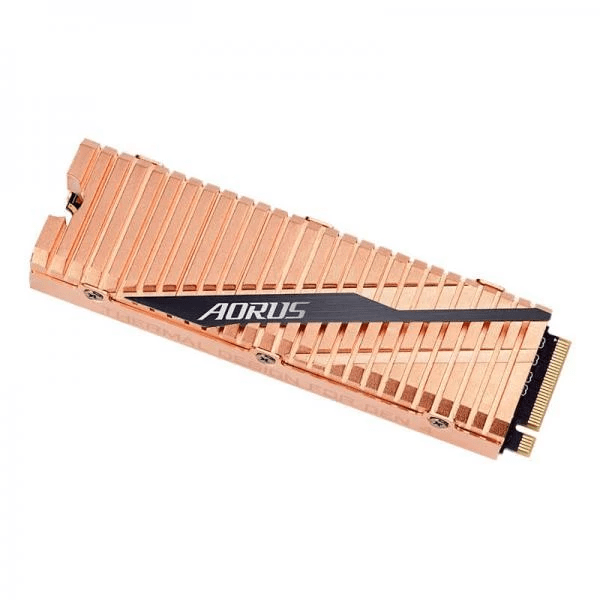

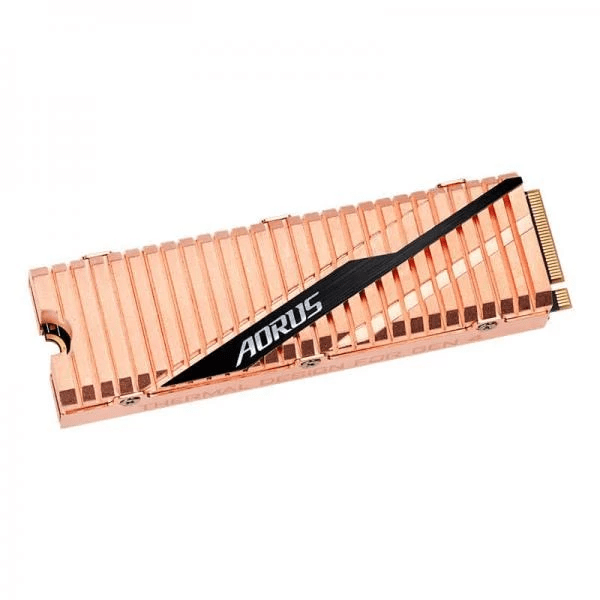

Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance

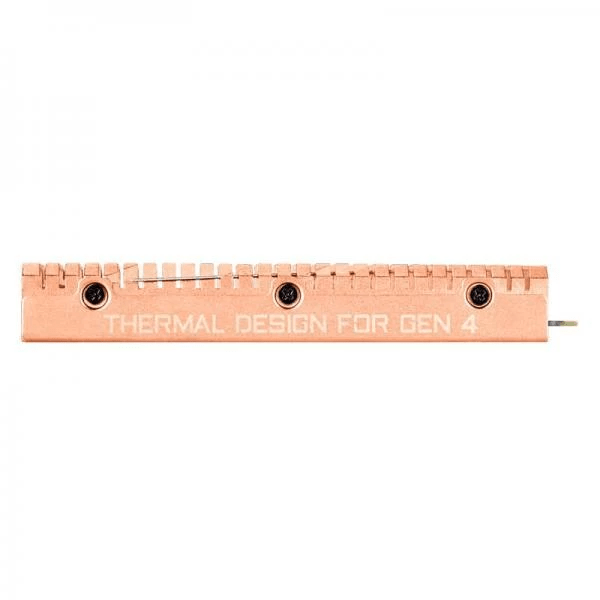

Efficient Copper Heat Spreader Design

Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improves thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of airflow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra-high transfer rate.
