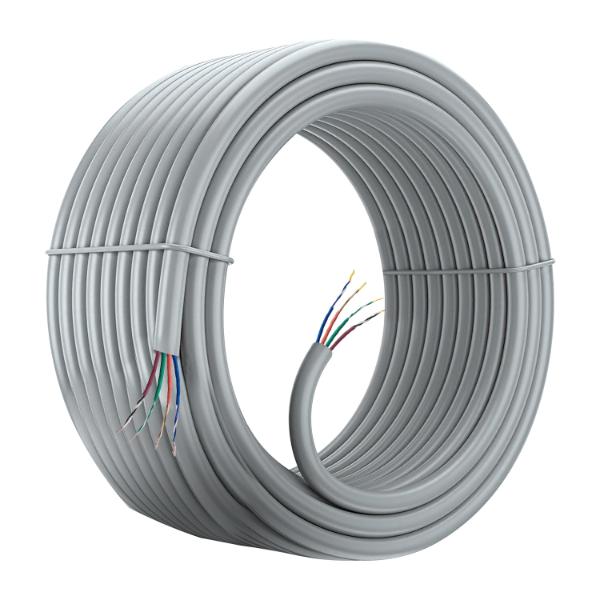

EVM Cat 6 High Speed Network Cable 100M EVM-NC-100
● No. of Cords: 4 Pairs
● EVM Conductor : Material – CCA Construction – 1/0.5mm (+/- 0.005mm)
● Insulation : Material – HDPE Thickness – 0.215 (+/- 0.03mm) Diameter – 0.90 (+/- 0.04mm)
● Inner Layer – Twisted : Direction: – S Pitch REF – 30mm underneath
● Outside Layer – PVC : Direction – S Pitch REF – 100 (+/- 5mm)
● Cross : Material – Polyethylene Construction – Round Material – PVC Diameter – 5.8 (+/- 0.20mm) Normal thickness – 0.58 (+/- 0.03mm)
● Electrical Properties : Ins. Resistance – Max. 78.8 mega ohms-km at 20oC Dielectric Test – Minimum AC 1.5KV Temp Rating – 50oC Voltage Rating – 30V
| Weight | 1 kg |
|---|---|
| Brands | EVM |
Specification
| No. of Cords | 4 Pairs |
| Conductor | Material – CCA, Construction – 1/0.5mm (+/- 0.005mm) |
| Insulation | Material – HDPE, Thickness – 0.215 (+/- 0.03mm), Diameter – 0.90 (+/- 0.04mm) |
| Inner Layer – Twisted | Direction – S, Pitch REF – 30mm underneath |
| Outside Layer – PVC | Direction – S, Pitch REF – 100 (+/- 5mm) |
| Cross Material | Polyethylene, Construction – Round, Material – PVC |
| Cross Diameter | 5.8 (+/- 0.20mm), Normal thickness – 0.58 (+/- 0.03mm) |
| Electrical Properties | Ins. Resistance – Max. 78.8 mega ohms-km at 20°C |
| Dielectric Test – Minimum AC 1.5KV |
| Temp Rating – 50°C |
| Voltage Rating – 30V |
