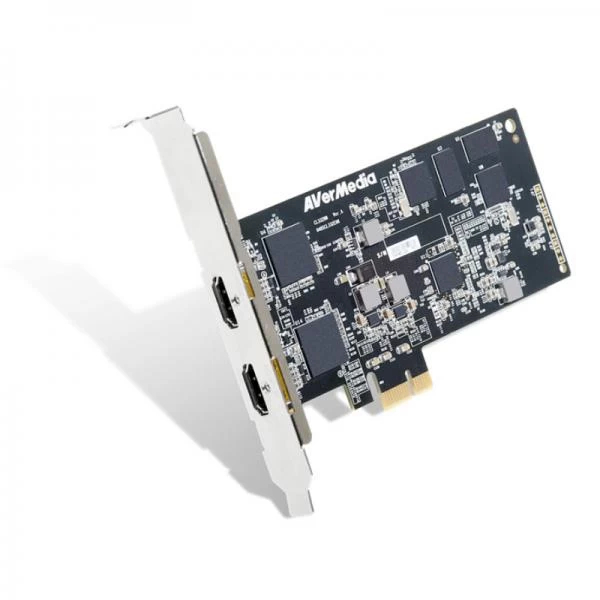

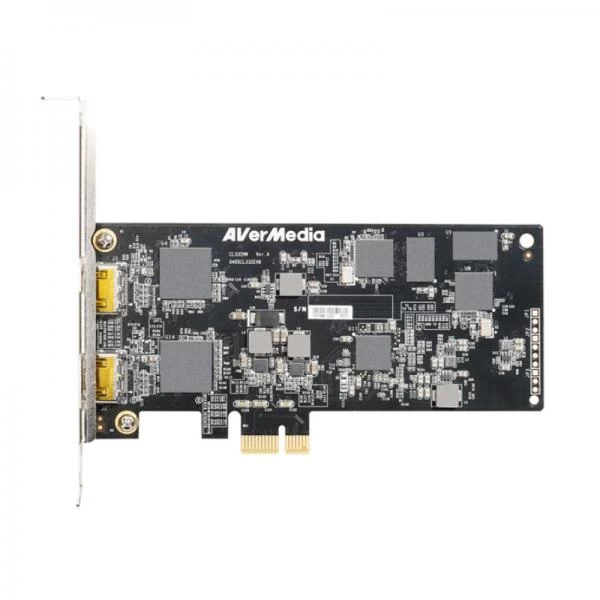

AVerMedia CL332-HN PCIE Capture Card
₹36,299
In stock
Notice any issues?
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
2 Channel HDMI 1080P 30FPS Video Capture
CL332-HN is a PCIe Gen2 x1 capture card equipped with a maximum input of 1920×1080@60fps and capturing resolution of 1920×1080@30fps. It has embedded audio inputs via standard HDMI connectors to ensure sturdy cable connection while the HDMI video source input supports astounding compressed video capture resolution of up to 1920×1080@60fps.
Along with AVerMedia proprietary SDK, CL332-HN can be easily and seamlessly integrated into various vertical applications that require superb video capture quality such as IP cam, broadcasting, surveillance, etc. With AVerMedia’s Windows and Linux driver support, clients are able to choose from a wide range of platforms according to their specific needs; this makes the CL332-HN the best choice for professional Full HD capturing applications.
Hardware H.264 Compression
The CL332-HN is equipped with an advanced built-in H.264 hardware encoder that enables the system to encode without impacting CPU’s computing power while maintaining high quality video encoding. This feature balances the load and in turn increases system’s reliability. As a result, the computer and its’ resources can focus on other important applications at hand.
Low Profile Design Capture Card
Suitable for small-footprint embedded platform. The low profile form factor design provides a better use of internal space by reducing cabling and allowing for flexible heat sink solution.
Hardware De-interlacing Video Technology
AVerMedia hardware-based video engine technology implements the most useful video processing functions such as deinterlacing and down scaling. This can significantly reduce computing burdens on software and hardware and in turn allow the resources to focus on other important parts of the application.
Video-processing SDK Included
Industrial customers can develop vertical applications flexibly and efficiently by using a specifically designed SDK, with features such as device control, media capture, A/V processing, and more.
Specification
Specification
| Host Interface | PCIe Gen2 x1 |
| Audio Interface | HDMI embedded audio |
| Audio Format | PCM |
| Audio Sampling Rate | 32KHz, 44.1KHZ, 48KHz |
| Connector Type | Standard HDMI |
| Input Interface | HDMI |
| Video Format | YUY2(4:2:2), YV12 (4:2:0), RGB24 |
| Color Depth | 8-bit |
| Channel No. | 2 Ch |
| Input Video Resolution & Frame Rate | 1920x1080p@(24/25/30/50/60) fps 1920x1080i@(50/60) fps 1680x1050p@60 fps 1440x900p@60 fps 1360x768p@60 fps 1280x1024p@60 fps 1280x960p@60 fps 1280x768p@60 fps 1280x720p@(50/60) fps 1280x800p@60 fps 1152x864p@60 fps 1024x768p@60 fps 800x600p@60 fps 720x576p@50 fps 720x480p@60 fps 640x480p@60 fps |
| Record Video Resolution & Frame Rate | 1920×1080 @(24/25/30) fps 1680×1050 @30 fps 1440×900 @30 fps 1360×768 @30 fps 1280×1024 @30 fps 1280×960 @30 fps 1280×800 @60 fps 1280×768 @60 fps 1280×720 @(50/60) fps 1152×864 @60 fps 1024×768 @60 fps 800×600 @60 fps 720×576 @50 fps 720×480 @60 fps 640×480 @60 fps |
| Encoding Mode | Hardware Encoding (H.264) / Software Encoding |
| Multi-Channel Support | Yes |
| Multi-Card Support | Yes |
| Supported OS | Windows 7/8.1/10 (32/64 bits)* |
| Form factor | Low Profile |
| Dimension (L x W) | 135 x 68.78 mm |
| Power Consumption | 5W |
| Operating Temperature | 0°C ~ 65°C |
| Operating Humidity | 5% – 80% Relative Humidity |
| Safety Certification | FCC / CE |
| Warranty | 1 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
