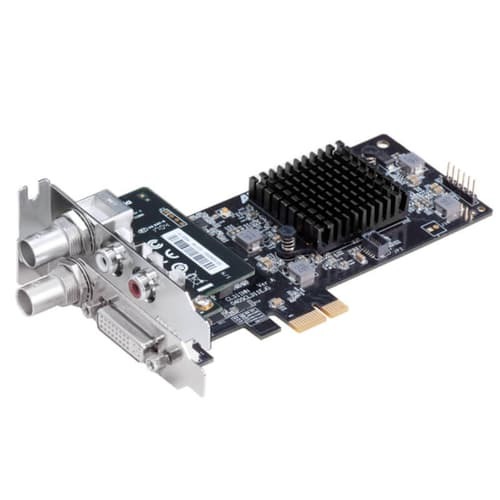

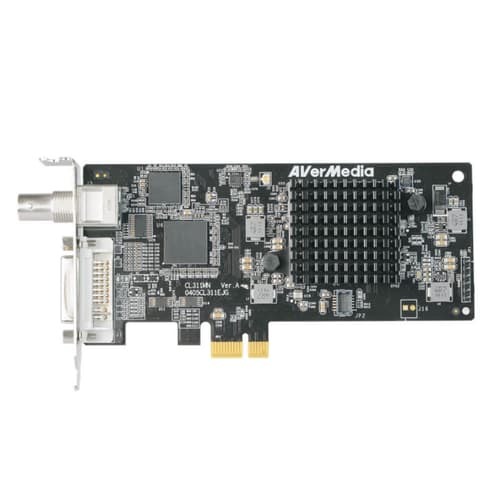

AVerMedia CL311-MN PCIe Low Profile Full HD 60fps Multi-interface Capture Card
- Max. capturing/ recording 1920 x 1080 60fps
- SDI/ HDMI/ DVI/ VGA video input interface
- Windows DirectShow Compatible
- Specifically designed SDK
₹44,999
In stock
Notice any issues?
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
AVerMedia CL311-MN PCIe Low Profile Full HD 60fps Multi-interface Capture Card
Feature
- Max. capturing/ recording 1920 x 1080 60fps
- SDI/ HDMI/ DVI/ VGA video input interface
- Windows DirectShow Compatible
- Specifically designed SDK
- Embedded SDI/ HDMI and analog L/R audio input interface(option)
- SDI video pass-through(option)
Multi-interface Full HD Capture Card
AVerMedia CL311-MN is a low-profile PCI Express capture card compatible with SDI/ HDMI/ DVI/ VGA sources. It supports 60fps full HD video capture that is ideal for monitoring, archiving, analyzing, while offering more flexibility and possibilities.
An All-around Industrial Imaging Solution
Endowed with a variety of digital and analog interfaces, it is ideal for industrial and commercial markets such as data recorder, medical imaging, machine vision and other industrial imaging applications.
Low Profile Form Factor
The compact low profile form factor design reduces cable routing and increases the use of interior space for a more flexible heat spreading solution.
SDI Pass-through for Simultaneously Preview
The optional daughter board offers pass-through functionality where input video feeds can be simultaneously viewed on an additional display without consuming PC processing power and hardware resources.
Support up to 4:4:4 10-bit RGB and YUV
CL311-MN can support up to 4:4:4 10 bit RGB and YUV, meaning it can capture colors across the full color spectrum for richer and brighter image quality. The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.
Video-processing SDK Included
Industrial customers can develop vertical applications flexibly and efficiently by using a specifically designed SDK, with features such as device control, media capture, A/V processing, and more.
Specification
| Host Interface | PCIe Gen2 x1 |
| Audio Interface | SDI, HDMI, L/ R |
| Audio Format | Embedded SDI, HDMI; PCM |
| Audio Sampling Rate | Audio L/ R: 48KHz, 16bit HDMI: 32KHz, 44.1KHz, 48KHz, 16bit |
| Connector Type | BNC for SDI DVI-I for HDMI/DVI/VGA RCA for LR |
| Video Input Interface | SDI/ HDMI/ DVI/ VGA |
| Video Format | YUV444: IYU2, AYUV, V410, Y410 YUV422: YUY2, YUYV, UYVY, V210, Y210 YUV420: I420, NV12, YV12 RGB: RGB565, RGB555, RGB24, RGB32, ARGB |
| Color Depth | 8-bit/ 10-bit |
| Channel No. | 1 Ch |
| Max. Input Resolution | SDI: 1920x1080p, 1920x1080i, 1280x720p, 720x576p, 720x480p, 720x576i, 720x480iHDMI: 1920x1080p, 1920x1080i, 1280x720p, 720x576p, 720x480p, 640x480p VGA: 1920x1200p, 1920x1080p, 1680x1050p, 1600x1200p, 1600x900p, 1440x900p, 1400x1050p, 1360x768p, 1280x1024p, 1280x960p, 1280x800p, 1280x768p, 1280x720p, 1152x864p, 1024x768p, 800x600p, 720x576p, 720x480p, 720x400p, 640x480p |
| Max. Record Resolution | 1920×1200 @ 60 fps 1920×1080 @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps 1680×1050 @ 60 fps 1600×1200 @ 60 fps 1600×900 @ 60 fps 1440×900 @ 60 fps 1440×576 @ 60 fps 1440×480 @ 60 fps 1400×1050 @ 60 fps 1360×768 @ 60 fps 1280×1024 @ 60 fps 1280×960 @ 60 fps 1280×800 @ 60 fps 1280×768 @ 60 fps 1280×720 @ 50 / 59.94 / 60 fps 1152×900 @ 60 fps 1152×864 @ 60 fps 1024×768 @ 60 / 70 / 75 / 85 fps 800×600 @ 56 / 60 / 72 / 75 / 85 fps 720×576 @ 50 fps 720×480 @ 59.94 / 60 fps 720×400 @ 60 fps 702×576 @ 60 fps 640×480 @ 59.94/60 fps |
| Encoding Mode | Software Encoding |
| Multi-Card Support | Yes |
| Supported OS | Windows 7/ 8.1/ 10 (32/ 64 bits)* |
| Form factor | PCIe Low Profile |
| Dimension (L x W) | 138 x 64.3 mm |
| Power Consumption | 5W |
| Operating Temperature | 0°C ~ 50°C |
| Operating Humidity | 5% ~ 80% Relative Humidity |
| Safety Certification | FCC/ CE |
| Warranty | 1 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
