Asus Prime Z690-P D4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
- Intel® LGA 1700 socket: Z690-P D4 Ready for 12th gen Intel® processors

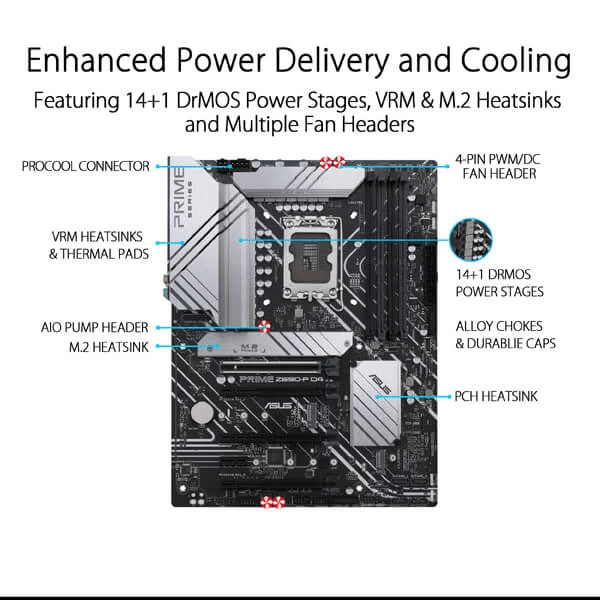

- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
Asus Prime Z690-P D4 Intel Motherboard
Features:
- The ASUS PRIME Z690-P WIFI D4 ATX motherboard is designed to support latest 12th Gen Intel CPU’s with LGA 1700 socket, Pentium Gold and Celeron Processors.

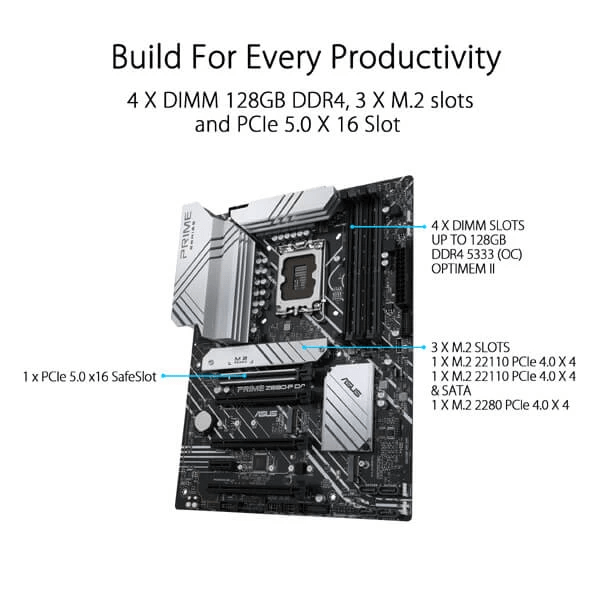

- The board is built with PCIe 5.0 Ready supporting 4 x DIMM, up to 128GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
- Equipped with the next-gen technology of Intel WIFI 6 which is compatible with the 802.11ax standard. Comes with PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Three M.2 slots(PCIe 4.0) and Thunderbolt 4 header support.
- Comes with extensive cooling options like VRM heatsink, M.2 Heatsink, PCH heatsink and hybrid fan headers via Fan Xpert 4 or the UEFI BIOS.
- The board comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test that can help users troubleshoot potential issues. It is also have a handful features like Overvoltage Protection, DRAM Overcurrent Protection, Stainless-Steel Back I/O and LANGuard.
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR
PRIME Z690-P WIFI D4
Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, three M.2 slots, 14+1 DrMOS, DDR4, HDMI, DisplayPort, Intel WiFi 6, 2.5 Gb Ethernet , USB 3.2 Gen 2×2 Type C, front USB 3.2 Gen 1 Type C,Thunderbolt 4 support and Aura Sync RGB lighting
- Intel LGA 1700 socket: Ready for 12th gen Intel processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: Intel WiFi 6, DDR4, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support
|
|
|
|---|---|---|
VRM Heatsinks and Thermal PadsTwo massive VRM heatsinks and high quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance | M.2 HeatsinkTwo M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers | Intel WiFi 6The Intel WiFi 6 module is compatible with the 802.11ax stan dard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 route rs to fully experience the networking potential of WiFi 6 |
|
|
|
|---|---|---|
14+1 DrMOSA VRM with 14+1 DrMOS delivers the power and efficiency that the latest Intel processors demand | DDR4 5333 (OC)Improvements to trace routing design provide the latest In tel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk | Three M.2 slots (up to 64 Gbps)Prime Z690 P WiFi D4 offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot up and app load times with OS or application Drives |
|
|
|
|---|---|---|
PCIe 5.0 SlotThe 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add in ca rds, and backward compatibility with previous versions of PCI Express | USB 3.2 Gen 2×2 Type-CNumerous USB ports support high end rigs loaded with peripherals, including both front and rear USB Type C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps | Q-LED CoreThe Q LED Core display produces light patterns by power LED during the Power On Self Test (POST) that can help users troubleshoot potential issues |
| Product Type | Gaming |
|---|---|
| Brands | Asus |
| Chipset | Z690 |
| Socket | LGA 1700 |
| Motherboard Size | ATX |
| Memory Series | DDR4 |
| Platform | Intel |
| Motherboard Series | Asus Prime |
| Warranty | 3 Years |
| EAN / UPC Code | 4711081471561 |
