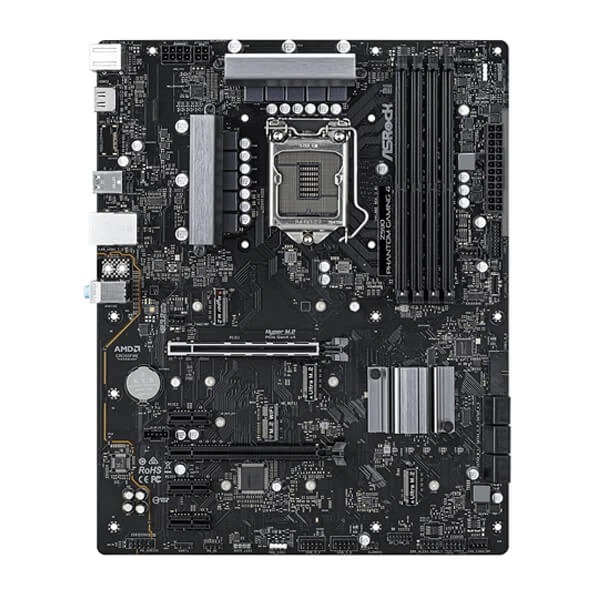

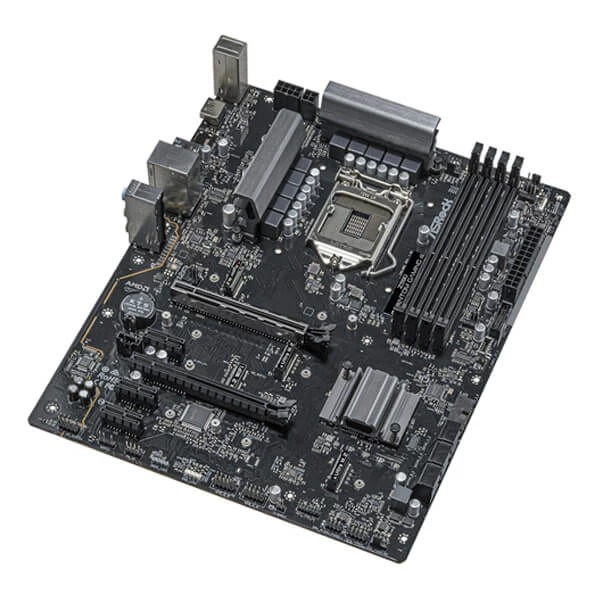

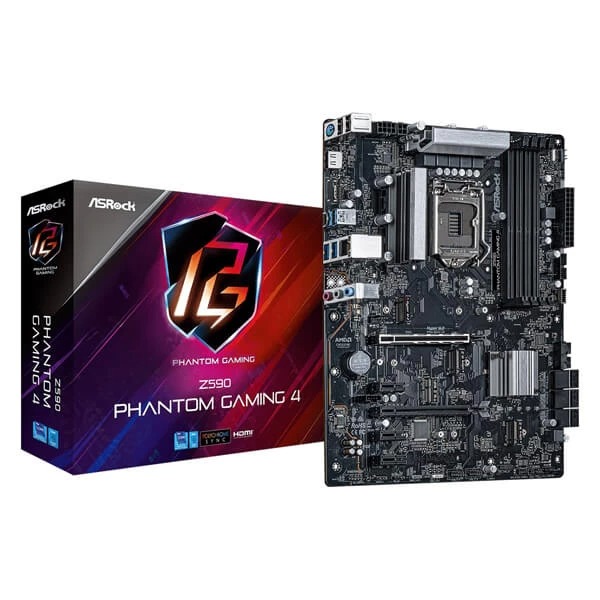

ASRock Z590 Phantom Gaming 4 Motherboard

Features:

• Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors
• 8 Phase Power Design
• Supports DDR4 4800MHz (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
• Graphics Output Options: HDMI
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s), Rear USB 3.2 Gen2 Type A+C (10Gb/s),
• 6 x USB 3.2 Gen1 (2 x Rear, 4 x Front), 6 x USB 2.0 (2 x Rear, 4 x Front)
• Intel^® Gigabit LAN
• ASRock Polychrome SYNC

Fast Mysterious Unbeatable

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke

Clever Access Memory

Base Frequency Boost (BFB) Technology

>Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

PCIe 4.0 High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

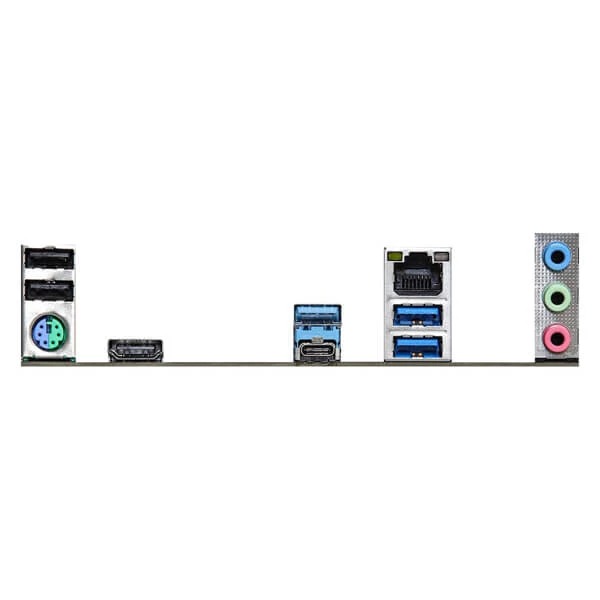

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Intel^® LAN

Intel^® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
