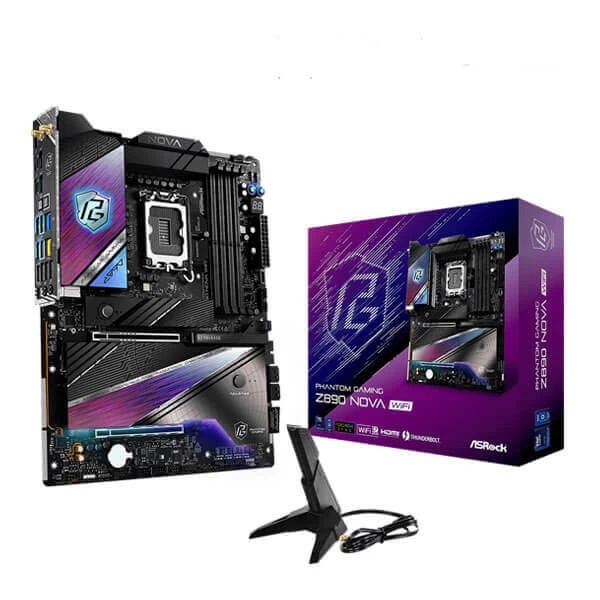

ASRock Phantom Gaming Z890 Nova WIFI Motherboard

ASRock Phantom Gaming Z890 Nova WiFi 7 ATX Motherboard Thunderbolt LGA1851 RL-ILM DDR5 9200 MHZ 256 GB

Feature

• ASRock Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• 20+1+2+1+1 Power Phase, 110A SPS for VCore
• 4 x DDR5 DIMMs
  Supports Dual Channel, up to 9600+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 2 Thunderbolt 4 Type-C
• Realtek ALC4082 7.1 CH HD Audio Codec
  Nahimic Audio
• 4 SATA3
  1 Blazing M.2 (PCIe Gen5 x4),4 Hyper M.2 (PCIe Gen4 x4),1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• 2 Thunderbolt 4 Type-C (Rear)
  1 USB 3.2 Gen2x2 Type-C (Front)
  4 USB 3.2 Gen2 Type-A (Rear)
  8 USB 3.2 Gen1 (4 Rear, 4 Front)
  6 USB 2.0 (2 Rear, 4 Front)
• 5Gbps LAN, Killer 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance, M.2 Expansion Card

FAST MYSTERIOUS UNBEATABLE

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Deluxe 6*M.2 Socket

Supports up to 6*NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed. It is ready to unleash the full potential of future ultrafast SSDs. to give a lightning fast data transferring experience.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Enlarged M.2 Heatsink

The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple.

PWM/DC Fan Support

ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

• CPU Fan Connector
• AIO Pump Fan Connector
• Chassis Fan Connectors
• Water Pump Fan Connector

Advanced Thermal Design

Equipped with XXL aluminum heatsinks that cover the VRM, PCH, and M.2 areas, providing enhanced heat dissipation for stable operation and optimal performance.

Wi-Fi 7 802.11be

Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
