Asrock H610M-HDV/M.2 R2.0 Intel H610 Micro ATX Motherboard

Asrock H610M-HVS/M.2 R2.0 Motherboard, Intel Socket 1700, 12th Gen, Micro ATX, DDR4 3200MHz, 1x PCIe 4.0 x16, 1x PCI-e 3.0 x1, 7.1 Channel Audio, Ultra M.2, USB 3.2 Gen1, Gigabit LAN, HDMI, VGA

Feature

• Supports 13^th Gen & 12^th Gen Intel^® Core™ Processors (LGA1700)
• 7 Phase Power Design
• Supports DDR4 3200MHz
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

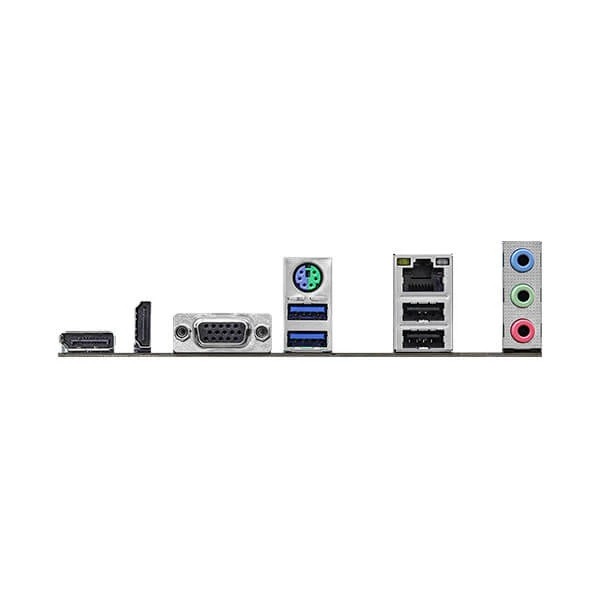

• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3
• 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
