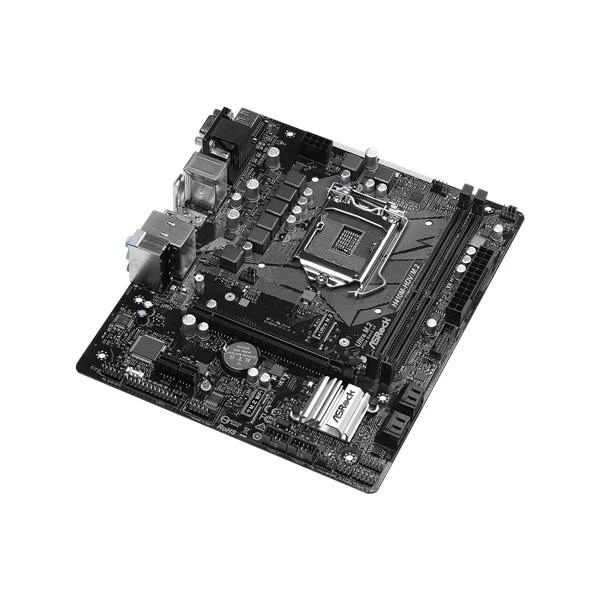

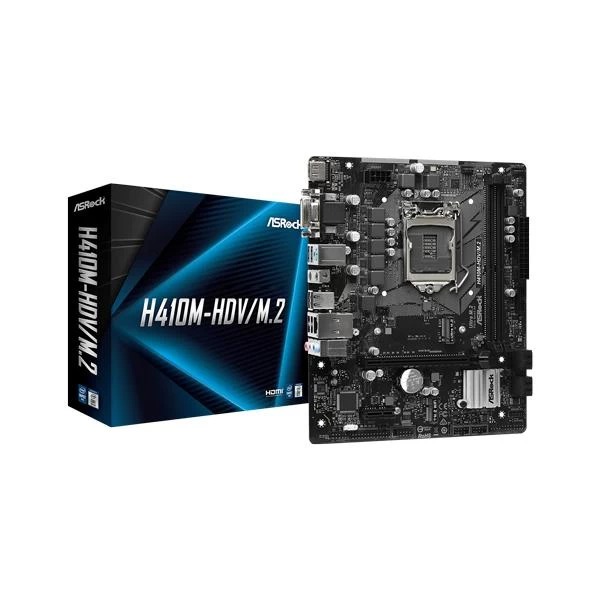

ASRock H410M-HDV/M.2 LGA 1200 Intel H410 SATA 6Gb/s Micro ATX Intel Motherboard

Intel H410 (LGA 1200) micro-ATX motherboard with M.2 support,Asrock H410M-HDV M.2 is equipped with DDR4 2933MHz, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps

7 Power Phase Design

Premium 50A Power Choke

Clever Access Memory

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

*Wi-Fi module is not included.

Features

• Supports 10th Gen Intel® Core™ Processors (Socket 1200)
• 7 Power Phase Design
• Supports DDR4 2933 MHz
• 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi

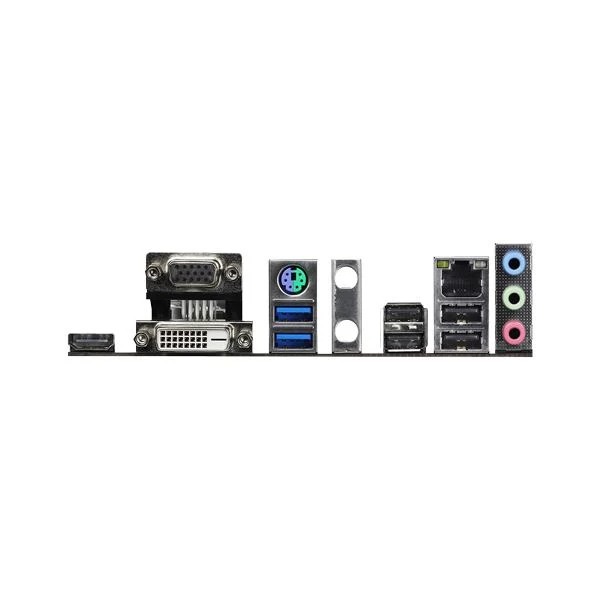

• Graphics Output Options: HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 4 USB 3.2 Gen1 (2 Front, 2 Rear)
• Intel® Gigabit LAN
