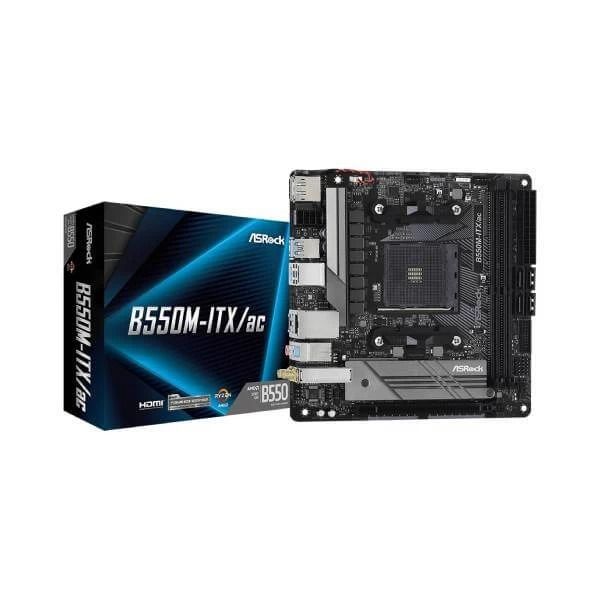

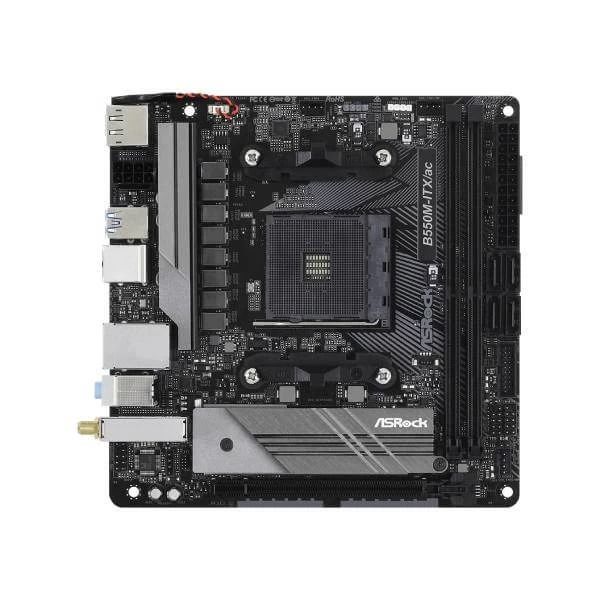

ASRock B550M-ITX/AC (WI-FI) Motherboard
✈️ Estimate Delivery:
116
People watching this product now!
30
Items sold in last 3 hours
- Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
- Supports DDR4 4733+ (OC)
- Graphics Output: DisplayPort, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
Description
Features
B550M-ITX/ac
- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16
- Graphics Output: DisplayPort, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 6 USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C)
- Realtek Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
The ASRock B550M-ITX/AC pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
Storage and Memory
- One M.2 slot is available, supporting up to type 2280 NVMe PCIe and SATA SSDs.
- Four SATA III ports are available for hard drives and 2.5″ SSDs.
- Supports RAID 0, 1, and 10.
- Up to 64GB of dual-channel ECC DDR4-4733 (OC) memory can be installed across two slots.
Electrical Performance
The ASRock B550M-ITX/AC motherboard has a digital 8 power phase design with Dr. MOS is optimized to deliver up to 50A of continuous current through each phase. High-quality 60A alloy chokes alongside durable capacitors deliver power to critical components such as the CPU.
Durable Design
- M.2 SSD slot armor helps to maintain optimal temperatures for high performance.
- The PCB has a high-density glass fabric design that reduces gaps between layers to protect against electrostatic discharge and humidity.
- Comprised of various technologies, ASRock Full Spike Protection helps to prevent damage to your motherboard’s components from unexpected voltage spikes.
Fully Connected
In addition to ASRock B550M-ITX/AC USB 2.0 ports, this motherboard includes USB 3.2 Gen 1 ports that can transfer data at up to 5 Gb/s with compatible devices. The USB 3.2 Gen 2 Type-C port has a maximum throughput of 10 Gb/s.
Integrated Graphics
The DisplayPort 1.4 HDMI 1.2 ports support 4K monitors, which allow you to take advantage of AMD Ryzen CPUs that have integrated graphics.
Fast Network Connectivity
- A Gigabit Ethernet port with enhanced lightning and electrostatic discharge protection high-speed network wired connections with compatible devices.
- Built-in 802.11ac Wi-Fi that delivers up to 433 Mb/s.
- Bluetooth 4.2 technology allows you to pair wireless devices such as headphones, keyboards, mice, and more.
Immersive Audio
The ASRock B550M-ITX/AC integrated Realtek ALC887 audio technology is designed to deliver detailed sound with 7.1-channel playback.
Polychrome RGB Lighting
ASRock Polychrome technology allows you to connect, customize, and control lighting equipment such as RGB LEDs and light strips on the onboard RGB headers. You can choose from a variety of lighting presets, which can be synchronized with capable peripherals such as keyboards, mice, CPU coolers, and more. The addressable RGB headers can detect the number of LEDs on a compatible device to further tailor the lighting effects.
Additional information
| Weight | 1 kg |
|---|---|
| Product Type | Gaming |
| Chipset | B550 |
| Motherboard Size | Mini ITX |
| Memory Series | DDR4 |
| Socket | AM4 |
| Platform | AMD |
| EAN / UPC Code | 4710483931727 |
