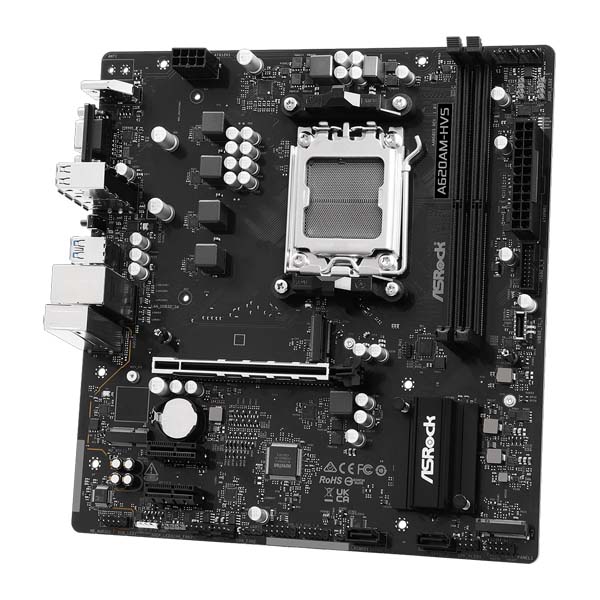

Asrock A620AM-HVS AM5 Micro ATX Motherboard

Asrock A620AM-HVS AM5 Micro ATX Motherboard

Feature

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Dr.MOS Power Design, 2oz PCB
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 6800+ (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

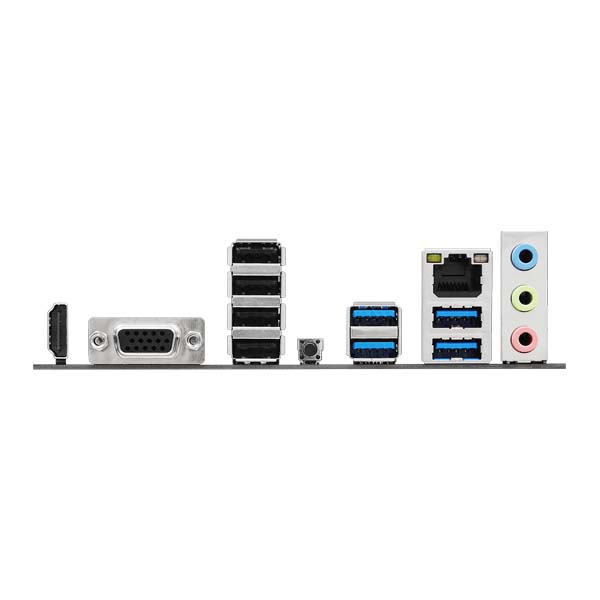

• Graphics Output Options: 1 HDMI, 1 D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 1 Hyper M.2 (PCIe Gen4x4)
• 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
• 2 SATA3
• 1 USB 3.2 Gen1 Type-C (Front)
• 6 USB 3.2 Gen1 (4 Rear, 2 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Realtek Gigabit LAN
• Supports BIOS Flashback

Built to deliver reliable performance with versatile features, perfect for daily tasks.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

High Speed M.2 Solution

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design

PWM/DC Fan Support

ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

① CPU Fan Connector
② Chassis Fan Connector

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Post Status Checker

Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
