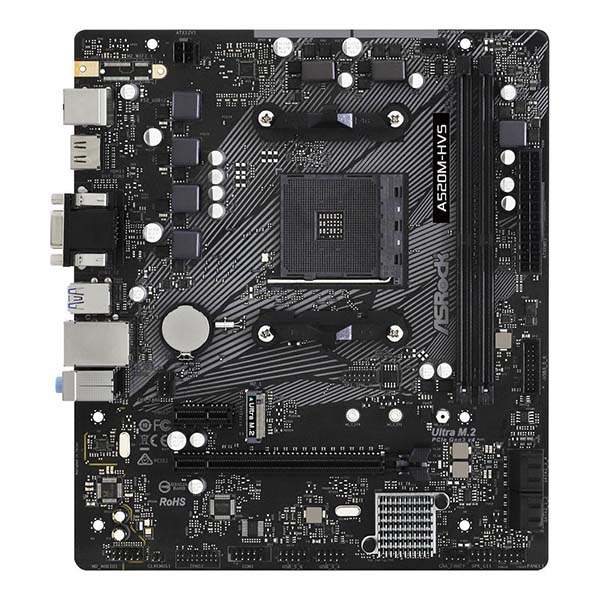

ASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard

ASRock A520M-HVS AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard

Feature

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• 6 Phase Power Design
• Supports DDR4 4733+ (OC)
• 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1

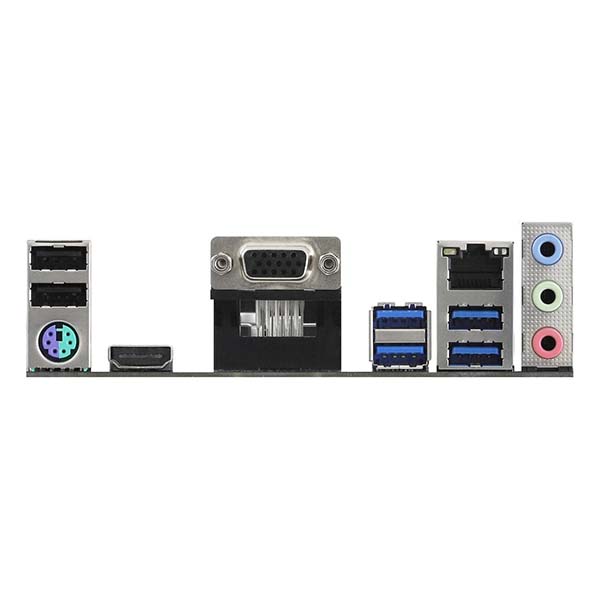

• Graphics Output Options: D-Sub, HDMI
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
• 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  6 x USB 2.0(2 x Rear, 4 x Front)
• Realtek Gigabit LAN

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
