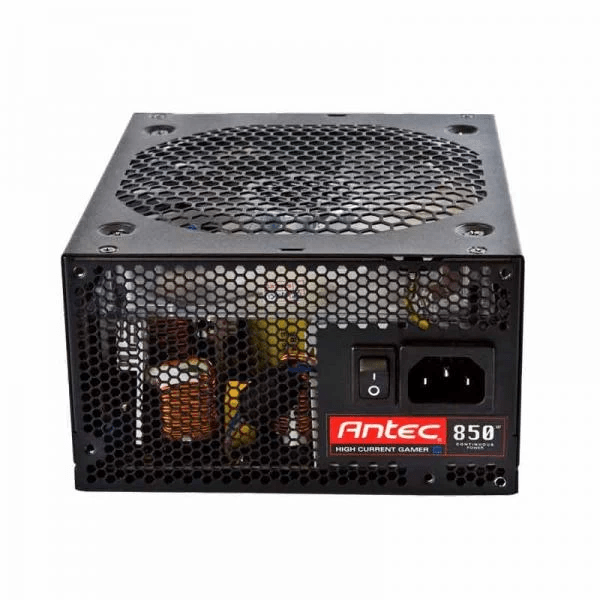

Antec HCG-850M 80 Plus Bronze
- Antec HCG-850M Dimension: 165(L)*150(W)*86(H)
- Antec HCG-850M Guaranteed 850W Continuous Power from Antec
- 100% Modular－Improves airflow and reduces clutter
- DC-DC-Based on a DC-DC topology
- 80 PLUS® Bronze certified－Up to 89% efficient, to reduce your electricity bill
- Antec Quality 5-year warranty and lifetime global 24/7 support
Disclosure: Links on this page may be affiliate links. If you make a purchase through these links, we may earn a small commission at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.
Missing Product?
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
1-5 Working Days
-
Official Brand Warranty (Check with Manufacturer)
-
3 Days DOA Replacement
Antec HCG-850M 80 Plus Bronze
Continuous power with high current rails
|
|
|
|---|---|---|
Antec HCG-850M Stable Power OutputAntec HCG850M PSU uses Continuous Power to deliver consistent and stable 850 wattage to your entire system. Features dual 98.8% +12V high current rails with high load capabilities, it ensures the maximum CPU and GPU compatibility. The darkened cables achieve minimal visibility in chassis. | Antec HCG-850M Double Ball Bearing FanThe 135 mm Double Ball Bearing (DBB) fan with a switchable white LED achieves a well cooled power supply for increased lifespan and hours of operation. Features a Thermal Manager for advanced low voltage fan control, Antec HCG850M ensures the optimal heat and noise balance. | 88% Energy Efficiency*Antec HCG850M power supply ensures an up to 88% efficiency to reduce your electricity bill. The 80 PLUS Bronze Saving energy is available even during max and low loads. * Test Date :11/1/12 |
High standard in engineering
|
|
|
|---|---|---|
Hybrid ModularThe HCG850M is a hybrid modular PSU. You can use only the cables you need to greatly simplify installation and clear out space. This also achieves better cooling while excessive cables can obstruct and reduce airflow. | Antec HCG-850M CircuitShield ProtectionThe heavy-duty and industrial grade protections are ensured, including OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), OTP (Over Temperature Protection) and SIP (Surge and Inrush Protection). | Advanced Features– 16 pin sockets with 2 different 8-pin cables per socket – 2 +12V rails for CPU & GPU compatibility – 98.8% +12V output for CPU & GPU support – 4 PCI-E connectors – Stealth wires for minimal visibility in chassis – ATX12V 2.4 and EPS12V 2.92 compatibility |
Antec’s HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS® BRONZE certification and Active PFC. HCG M’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins.
Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing LED fan complete the package. CircuitShield™ makes the HCG-850M safe and reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering and extreme efficiency are what you’re after, the HCG M is the PSU for you.
Features
- Antec HCG-850M 850W Continuous Power – Guaranteed 850W of Continuous Power from Antec
- 80 PLUS® BRONZE certified – Up to 88% efficient, to reduce your electricity bill
- AQ5 – Antec Quality 5 year warranty and lifetime global 24/7 support
- 16-pin Socket – Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- 135 mm LED DBB Silence – Whisper-quiet high-quality double ball bearing LED fan with long lifetime
- Thermal Manager – An advanced low voltage fan control for optimal heat & noise management
- High Current Rails – 2 +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
- 98.8% +12V – Output for maximum CPU & GPU support
- Multi PCI-E – 4 PCI-E connectors for multiple GPU support
- NVIDIA SLI®-Ready & AMD Crossfire certified – Tested & certified by NVIDIA® for SLI® & AMD for Crossfire systems
- CircuitShield™ – Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP) & Surge & Inrush Protection (SIP)
- Japanese Heavy-Duty Caps – High-performance Japanese capacitors ensure tightest DC stability and regulation
- Stealth Wires – All wires darkened for minimal visibility in chassis
| Weight | 2 kg |
|---|---|
| Dimensions | 14 × 15 × 9 cm |
| Brands | Antec |
| Wattage | 850W |
| Modular | Fully Modular |
| EAN / UPC Code | 761345062244 |
