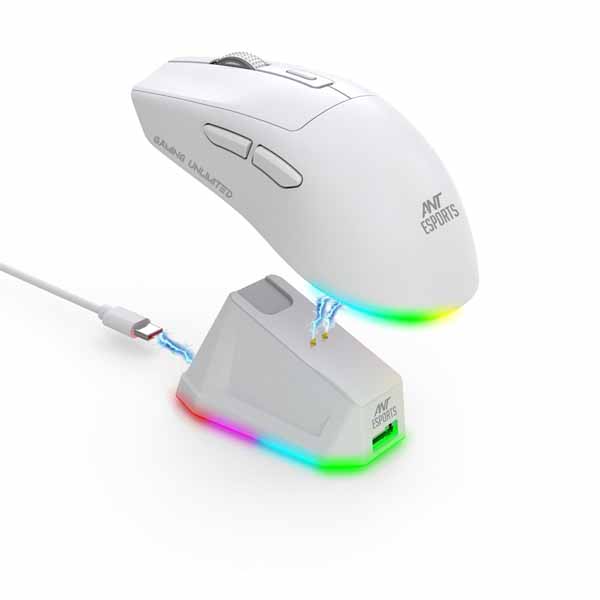

Ant Esports GM810 Pro Wireless Optical Gaming Mouse (White)

Feature

• Ant esports mouse has DPI: 800-1600-2400-3600-7200 Default 1600
• Switch Position Downwards: Power On
• Switch Position in the Middle: Power Off
• The Red light position on the right side of the bottom: 2.4G Pairing Mode
• The Blue light position on the right side of the bottom: Bluetooth Mode
• Pressing the mode button on the right side of the bottom: Once the second light goes out, the Bluetooth function disconnects.

The properties of light, operating current and connection mode might differ due to different PC configurations.

• Lighting effects:
  Long Press the “DPI Key” for 3-5 seconds to change the lighting effect.

ELECTRICAL AND CHARACTERISTICS AND CONNECTION MODE

• Connect the interface to the Interface 2.4G & BT
• Power supply requirement of Power requirements
• Wireless mode: 2.4G + BT + charging
• Battery capacity: 400 mAh
• Power Input: DC 2.2 ~ 2.5V, 18 mAh
• Tracking Speed: Up to 28 ips
• Frame Rate: Max 3000 fps
• Operating Current: VDD 2.2V
• Run Amp: 3.2uA
• Sleep 1: 320uA
• Sleep 2: 600uA
• Power down: 7uA

COMPATIBILITY

• PC: Win2000 / Win XP / WinME / Vista / Win7 / Win8 / Win10 / Win11 / Android / Linux / Apple and other operating systems

BACKLIGHTING IS ASSOCIATED WITH DORMANCY

• The mouse goes to hibernation if not used for 60 seconds.

MATTERS NEED ATTENTION

1. Let the mouse go out for 1 minute, and it can sleep automatically. Touch any key, you can wake up. Do not put the mouse in the bag while it is sleeping.
2. The Bluetooth connection has memory function. When it’s connected to a lost device, it will clear the memory by itself. If it can’t actively connect to you:
   • Please reconnect Bluetooth again.
   • When the battery is low, it stalls.
   • Please charge in time.

PRODUCT DIMENSIONS

• Length Length: 69.9mm
• Width: 47.3mm
• The Height is 39.4mm
• Weight: 47 ± 3gm

Body Color: White/Black
Materials: ABS
Lighting Effect: RGB

IN THE BOX

• Mouse, Charging Dock, Charging Cable, USB Receiver
